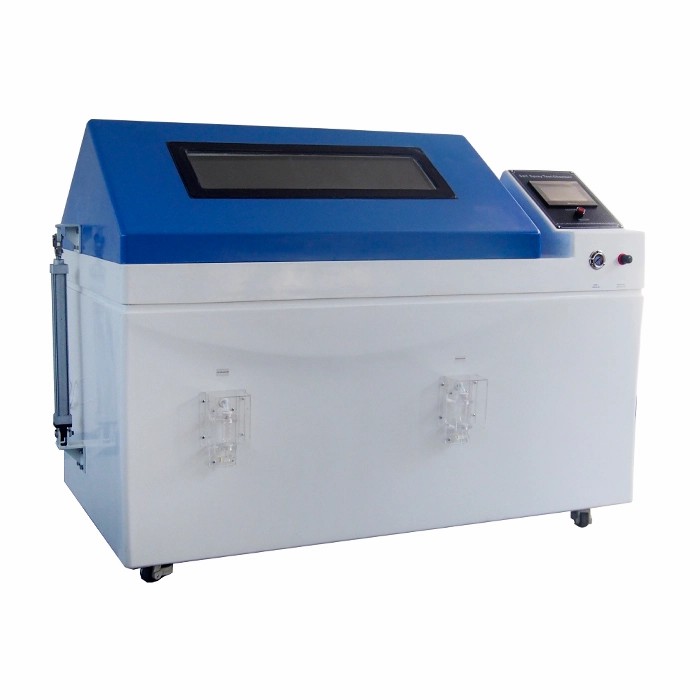

Filiform Corrosion Tester

Features and Benefits1.Key environmental parameters such as temperature salt spray concentratio

WhatsApp : +86 13816217984

Email : info@qinsun-lab.com

Content

Features and Benefits

1.Key environmental parameters such as temperature salt spray concentration are precisely controlled, which simulates the corrosion environment that metal materials may encounter under different climatic conditions and use scenarios.

2. With a cyclic test mode, you can cycle switch stages such as salt spray - drying - wetting - standing, which can better simulate the dry and wet alternations and temperature changes experienced by metal materials, so as to more accurately evaluate the material's resistance to filament-like corrosion.

3. Accelerate filamentous corrosion in a short time to quickly assess the corrosion resistance of materials. The wire corrosion tester can greatly shorten the test cycle and improve the test efficiency.

4. Simultaneous testing of multiple samples allows for rapid screening and evaluation during mass production and development. Multiple samples tested under the same test conditions can also improve the repeatability and comparability of test results.

Configuration

① Workroom	Upgraded version of glass fiber reinforced plastic material, one molding, better sealing, to prevent salt spray corrosion media leakage. Standard sample holder features a round rod and V-shaped groove design. Test pieces' angles can be adjusted. Customized insert sample holders are also available.
② Spray tower	Generates salt spray to atomize salt water evenly. Composed of tower body, sprinkler head, brine pipe, etc. The nozzle is made of quartz material, which is resistant to high temperature, not easy to clog and easy to clean.
③ Heater strip	Located at the bottom of the workroom to meet the temperature conditions required for testing.
④ Saturated barrel	Preheat the air entering the spray tower. Make the air contain enough moisture to achieve saturation.
⑤ Controller	Set and control various parameters of the test, such as temperature, spray time, test cycle, etc., to ensure the accuracy and repeatability of the test.
⑥ Salt solution tank	A container that stores a brine solution and provides a source of salt spray for the spray tower. Equipped with a stirring device to stabilize PH value.
⑦ Air source(Option)	Provides compressed air to the spray tower and is the power source for generating salt spray. The air source pressure and flow rate are stable to ensure the production and spraying effect of salt spray.

Specifications

Model	STD S-150	STD S-250	STD S-750	STD S-010
Internal dimensions (mm)	590470400	1000640500	1100750500	10001300600
Overall dimensions (mm)	14607601140	18509601350	195010301350	2000×1300×1600
Interior Volume (L)	110	320	410	780
Temperature Range	Ambient ～ +60 ℃
Temperature Fluctuation	± 0.5 ℃
Temperature Deviation	± 2.0 ℃
Humidity Range	95% ~ 98% RH
Salt Fog Deposition	1～2ml / 80cm2 · h
Spray Type	Continuous / Periodic
Salt Fog Collected	Fog collector and fog measure cylinder
Air Preheating	Saturated air barrel
Spraying System	Atomizer tower and Spray nozzles
Controller	PID controller
Safety Device	Humidifier Dry-combustion Protection; Over-temperature Protection; Over-current Protection; Water Shortage Protection; Earth leakage Protection
Material	Glass fiber reinforced plastics
Standard Configuration	6 round bars and 5 V-shaped grooves

Qinsun Instruments Co., LTD is a professional laboratory testing instrument manufacturer in China,Have been focusing on laboratory instrument R&D more than 30 years and have rich industry experience,Based on international testing standards,We are also the instrument supplier for BV SGS laboratory,We provide one-stop solutions for lab instruments,Free Training and Turn-Key Service,Products exported all over the world,Offer 36 month warranty and are a trustworthy partner.
