Features and Benefits1. The salt fog and SO2 corrosion chamber can realize the test under the a
WhatsApp : +86 13816217984
Email : info@qinsun-lab.com

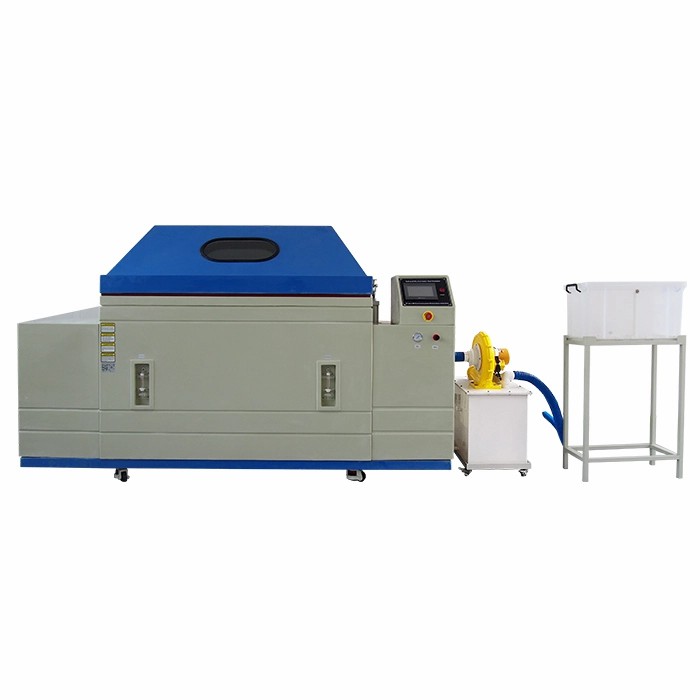

1. The salt fog and SO2 corrosion chamber can realize the test under the alternating conditions of salt spray, SO2 gas, temperature and humidity. It is mostly used for corrosion testing of automobiles, electronics and other products.
2. The salt fog tester chamber can meet the test standards of ASTM B117. ISO 9002. IEC60068 and ASTM G85 and etc.
3. The exhaust gas treatment device of the salt fog and SO2 corrosion chamber can realize the safe treatment of gas after the test and has the characteristics of high safety and good sealing.
4. The salt fog test equipment is available in a variety of sizes, including small, medium and walk-in models.
① Workroom |
|
② Spray tower | Tower sprayer, it guides the spray evenly throughout the workroom through the spray tower. The spray nozzle is a non-crystalline glass nozzle. |
③ Refrigerating system | The use of mechanical compression refrigeration, such as fully closed French TECUMSEH compressor using environmentally friendly refrigerant. |
④ Air circulation system | The centrifugal fan is used to make the temperature, humidity, corrosion gas and other test parameters inside the workroom more uniform through the design of up-air and down-air circulation. |
⑤ Heating system | The alloy electric heat pipe is used as the heating element, and the heating temperature can be accurately controlled by the programmable controller. |
⑥ Humidity system | External isolation, stainless steel surface evaporation humidifier, which can adjust the humidity of the workroom according to the test requirements. |
⑦ Control system | Programmable color LCD touch screen controller with Ethernet connectivity for remote monitoring and operation. |
⑧ Saturated barrel | Used to preheat and humidify the air entering the workroom, so that the air reaches a saturated state, so as to ensure the stability and consistency of the test environment. |
⑨ Salt solution tank | It is used to store the prepared salt solution. It is connected to the spray tower through the pipe to provide the salt solution for the spray. |
⑩ NAOH tank |
|
⑪ SO₂ gas cylinder | Store SO₂ gas to provide the corrosion gas needed for testing, and precisely control the flow and timing of SO₂ gas entering the workroom. |
⑫Air source(option） | To provide compressed air for the spray tower, so that the salt solution can be atomized into salt spray. |
Model | STD SSC-010 | STD SSC-016 | STD SSC-020 |
Internal dimensions (mm) | 800*1450*680 | 1000*1600*800 | 1000*2000*900 |
Overall dimensions (mm) | 2600×1400×1650 | 2750*1600*1800 | 3150*1600*2100 |
Interior Volume (L) | 780 | 1280 | 1800 |
Temperature Range | +10 ℃ ～ +90 ℃ | ||
Temperature Fluctuation | ± 0.5 ℃ | ||
Temperature Deviation | ± 2.0 ℃ | ||
Humidity Range | 30% ~ 98% RH | ||
Humidity Deviation | + 2%, - 3% | ||
Salt Fog Deposition | 1～2ml / 80cm2 · h | ||
SO2 Gas Control | Control and display volume of SO2 gas | ||
Cooling system | Mechanical compression refrigeration system | ||
Humidifier | External isolation, stainless steel surface evaporation humidifier | ||
Air Preheating | Saturated air barrel | ||
Spraying System | Atomizer tower and Spray nozzles | ||
Salt Fog Collected | Fog collector and fog measure cylinder | ||
Sealing | Pneumatic seal | ||
Controller | Programmable color LCD touch screen controller, Ethernet connection | ||
Air Circulation | Centrifugal wind fan | ||
SO2 Exhaust Device | NAOH tank | ||
Safety Device | Humidifier Dry-combustion Protection; Over-temperature Protection; Over-current Protection; Water Shortage Protection; Earth leakage Protection | ||
Material | Glass fiber reinforced plastics | ||
Standard Configuration | 8 round bars and 7 V-shaped grooves | ||
