Features and Benefits1. Cyclic corrosion test chamber can realize alternating tests under the c
WhatsApp : +86 13816217984
Email : info@qinsun-lab.com

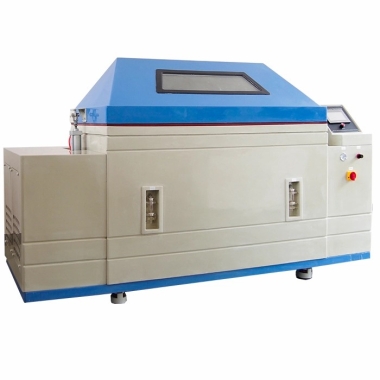

1. Cyclic corrosion test chamber can realize alternating tests under the combination of salt spray, temperature and humidity conditions and other environmental conditions. It is mostly used for corrosion testing of automobiles, electronics and other products.
2. The cyclic corrosion test chamber adopts pneumatic opening and closing of the lid, which is simple and convenient to operate.
3. Cyclic corrosion test chamber applies a programmable operating system to achieve programmatic and automated operation.
4. Corrosion tester is available in a variety of sizes, small, medium and walk-in models.
①Workroom |
|
②Spray tower |
|
③Refrigerating system | The refrigeration system is composed of compressor, condenser, throttling element and evaporator forming refrigerating cycles. |
④Air circulation system | The centrifugal fan promotes the circulation of air to ensure the uniformity of temperature and humidity and the stability of the salt spray concentration. |
⑤Heating system | The inner heating tube of the interlayer of the cyclic corrosion test chamber heats up quickly. |
⑥Humidity system | The humidifying tube of the humidifying barrel will introduce water into the workroom and through the fan to increase the humidity. |
⑦Control system | Real-time monitoring and control of cyclic corrosion test chamber parameters, temperature, humidity, salt spray settling amount, spray time, etc. |
⑧Saturated barrels | The water inside the saturated barrel is heated to evaporate, forming saturated wet air, which is then piped to the workroom to be mixed with salt spray. |
⑨Salt solution tank | A salt water stirring system is installed in the salt water tank: stir and heat the salt water to stabilize the pH value. |
⑩Air supply(option) | The optional air source is mainly used to provide the gas power required for the spray tower to ensure that the salt spray can be sprayed smoothly. |
Model | STD SC-010 | STD SC-016 | STD SC-020 |
Internal dimensions (mm) | 1300*1000*600 | 1600*900*720 | 2000*1000*800 |
Overall dimensions (mm) | 2000*1300*1600 | 2300*1300*1700 | 2700*1300*1900 |
Interior Volume (L) | 780 | 1280 | 1800 |
Temperature Range | +10 ℃ ～ +90 ℃ | ||
Temperature Fluctuation | ± 0.5 ℃ | ||
Temperature Deviation | ± 2.0 ℃ | ||
Humidity Range | 30% ~ 98% RH | ||
Humidity Deviation | + 2%, - 3% | ||
Salt Fog Deposition | 1～2ml / 80cm2 · h | ||
Cooling system | Mechanical compression refrigeration system | ||
Humidifier | External isolation, stainless steel surface evaporation humidifier | ||
Water supply system | Water purification system | ||
Air Preheating | Saturated air barrel (31Liter) | ||
Spraying System | Atomizer tower and Spray nozzles | ||
Salt Fog Collected | Fog collector and fog measure cylinder | ||
Controller | Programmable color LCD touch screen controller, Ethernet connection | ||
Air Circulation | Centrifugal wind fan | ||
Safety Device | Humidifier Dry-combustion Protection; Over-temperature Protection; Over-current Protection; Water Shortage Protection; Earth leakage Protection | ||
Material | Glass fiber reinforced plastics | ||
Standard Configuration | 8 round bars | ||
