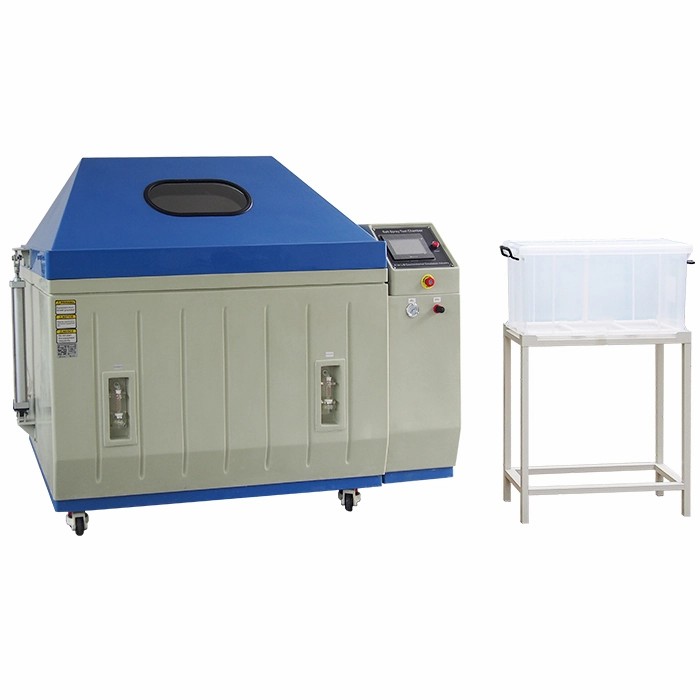

Salt Spray Test Equipment

Model

SC-010

SC-016

SC-020

Internal dimensions (mm)

1300*1000*600

1600*900*720

2000*1000*800

Overall dimensions (mm)

2000*1300*1600

2300*1300*1700

2700*1300*1900

Interior Volume (L)

780

1280

1800

Temperature Range

+10 ℃ ～ +90 ℃

Temperature Fluctuation

± 0.5 ℃

Temperature Deviation

± 2.0 ℃

Humidity Range

30% ~ 98% RH

Humidity Deviation

+ 2%, 3%

Salt Fog Deposition

1～2ml / 80cm2 · h

Material

Glass fiber reinforced plastics

Standard Configuration

8 round bars

①Workroom

• Upgraded FRP material, aging resistant, corrosion resistant, easy to clean, no leakage.

• Sample holder design of round rod and V-shaped groove, sample test Angle can be adjusted.

②Spray tower

• Spray tower: The nozzle is installed inside and its spire height can be adjusted to guide the fog and spread the fog evenly.

• Nozzle: no deformation, no crystallization, stable spray volume, and spray fog particles are small.

③Refrigerating system

The cooling system automatically opens or closes and adjusts the cooling capacity according to the feedback data from the temperature sensor.

④Air circulation system

Forced air convection makes the temperature, humidity and salt spray in the equipment evenly distributed to ensure the stability and consistency of the test environment.

⑤Heating system

Built-in nickel-chromium alloy heating core, salt resistance, corrosion resistance, fast heating, uniform temperature distribution, installed at the bottom of the equipment.

⑥Humidity system

External isolation, stainless steel surface evaporation humidifier.

⑦Control system

Programmable controller, automatic running test.

To achieve the temperature, humidity, spray time, spray cycle and other parameters set and adjust, and store data.

⑧Salt solution tank

Made of PVC plate for storing brine solution, with brine mixing design to stabilize PH.
