Detailed Product DescriptionStainless Steel:Coated PrintedView Windown:Glass Two View Windows W
WhatsApp : +86 13816217984
Email : info@qinsun-lab.com
| Stainless Steel: | Coated Printed | View Windown: | Glass Two View Windows With Lights |
|---|---|---|---|
| Tray: | 2 Pcs Stainless Steel Trays | Temperature: | RT-250C |
| Temperature Display: | Digital Temperature Display | Standard: | STD SL-IPX8-30A-20L |
| Highlight: | environmental testing equipment environmental testing machine | ||

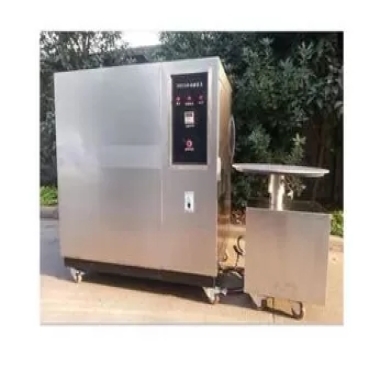

STD IPX8 Pressure Control Immersion Test Device Automatic Regulation
Under the device with shell protection grade (IP code) based mainly for electronic and electrical products,outdoor lighting,electric cabinet,communication equipment,diving equipment and other products to simulate the water environment to test the protective performance of IP products. The test results are used to determine whether the requipment are met,so as to provide the design,development,optimization and ex factory inspection of the product.
| Model | STD SL-IPX8-30A-20L | STD SL-IPX8-50A-100L |
| Inner dimension | Inner diameter×height | Inner diameter×height |
| Outer dimension | 460×580×900mm | 600×780×1300mm |
| Flange thickness | 20mm | 25mm |
| Wall thickness | 3mm | 4mm |
| Range of test depth | 0-30m | 0-50m |
| Range of test pressure | 0-0.3Mpa / 0-3bar | 0-0.5Mpa / 0-5bar |
| Pressure display mode | Pressure pickup | |
| Pressure control mode | Automatic regulation | |
| Power | 100w | |
| Supply voltage | 220v |
The air pressure is applied to make the compressed air generate pressure on the water body,so
as to simulate the corresponding water depth environment.
Qinsun Instruments Co., LTD is a professional laboratory testing instrument manufacturer in China,Have been focusing on laboratory instrument R&D more than 30 years and have rich industry experience,Based on international testing standards,We are also the instrument supplier for BV SGS laboratory,We provide one-stop solutions for lab instruments,Free Training and Turn-Key Service,Products exported all over the world,Offer 36 month warranty and are a trustworthy partner.
