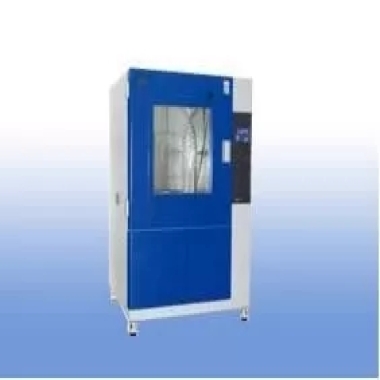

Detailed Product DescriptionSTANDARDSTD SL-IPX1-4B-R400 Comprehensive Rain Test BoxSpray Ring R
WhatsApp : +86 13816217984
Email : info@qinsun-lab.com
| STANDARD | STD SL-IPX1-4B-R400 Comprehensive Rain Test Box | Spray Ring Radius: | 400 (mm) |
|---|---|---|---|
| Water Pipe Diameter: | Φ600mm | Nozzle Diameter: | Φ0.4mm |
| Aperture Spacing 50mm: | Aperture Spacing 50mm | Standard: | STD IPX1-4 |
| Highlight: | environmental testing equipment environmental testing machine | ||
STD IPX1-IPX4 can be completed
Water tank inside,circulating water
Sample energization test
Connected WIFI operation
Main Technical Parameters
| Model | STD SL-IPX1-4B-R400 |
| Inner dimension | 900×900×900mm |
| Outer dimension | 1350×1150×1750mm |
| Raindrop area | 600×600mm |
| Size of swing tub | R400mm |
| IPX12 Flow | IPX1=1mm/min;IPX2=3mm/min |
| IPX34 Flow | IPX3=1.1L/min;IPX4=1.8L/min |
| Load bearing of turntable | 50kg(Max) |
| Adjustable range of turntable | 450-750mm |
| Power | 1.0Kw |
| Supply voltage | 220V |
| Safety protection measure | Leakage protection,water shortage protection,short circuit protection |
Disclaimer: The above content is for reference and communication only among industry insiders, and does not guarantee its accuracy or completeness. According to relevant laws and regulations and the regulations of this website, units or individuals who purchase related items should obtain valid qualifications and qualification conditions.
