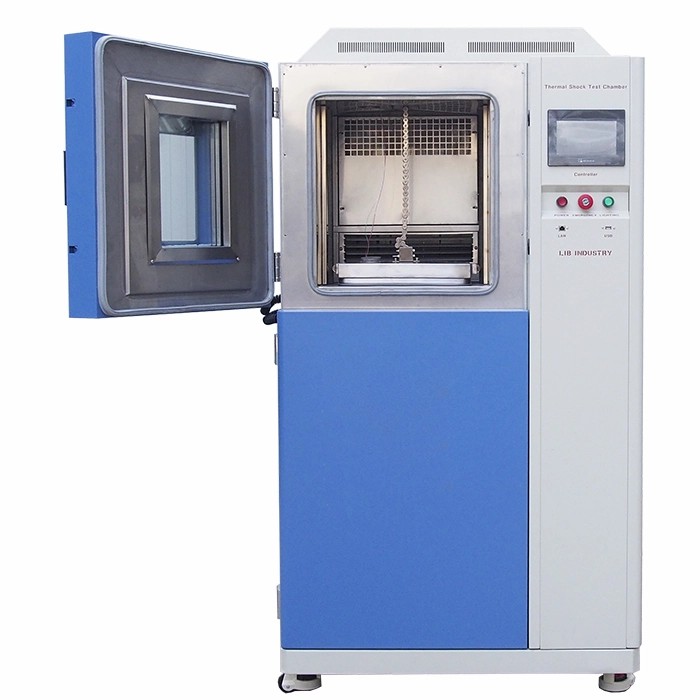

Features and Benefits1. The sample is shuttled directly through the preheated/pre-cooled chambe
WhatsApp : +86 13816217984
Email : info@qinsun-lab.com
1. The sample is shuttled directly through the preheated/pre-cooled chamber, experiencing very harsh and extreme temperatures in just a few seconds.
2. The basket is sliding on the preset track and sliding is stable to ensure the normal test.
3. Workroom and basket material are SUS304. high and low temperature resistance, long life.
4. Various types of temperature impact test chamber, basket size, temperature performance can be customized.
Model | STD TS-162 | STD TS-340 | STD TS-500 | STD TS-1000 | |
Internal Dimensions (mm) | 300*300*250 | 450*450*360 | 650*650*500 | 850*850*700 | |
Overall Dimension (mm) | 1560*870*1545 | 1710*1020*1845 | 1910*1220*2265 | 2110*1420*2665 | |
Interior Volume (mm) | 22L | 72L | 211L | 505L | |
Loading Capacity | 20kg | 30kg | 50kg | 60kg | |
Pre-heat Room | Upper limit Temperature | +220℃ | |||
Heating Time | Ambient ~ + 200℃, within 30 minutes | ||||
Pre-cool Room | Lower limit Temperature | -75℃ | |||
Cooling time | Ambient ~ -70℃, within 30 minutes | ||||
Test Room | High Temperature Exposure Range | Ambient +20 ~ +200°C | |||
Low temperature Exposure Range | –65 ~ -5°C | ||||
Temperature Fluctuation | ≤±0.5℃ | ||||
Temperature Deviation | ≤±3 ℃ | ||||
Temperature Recovery Time | Within 5 minutes | ||||
Cooling System | Mechanical compression refrigeration system | ||||
Controller | Programmable color LCD touch screen controller, Ethernet connection | ||||
Safety Device | Over-temperature protection, Over-current protection; Refrigerant high-pressure protection; Earth leakage protection | ||||
Exterior Material | Steel Plate with protective coating | ||||
Interior Material | SUS304 stainless steel | ||||
Observation Window | Interior lighting, double-layer thermo stability silicone rubber sealing | ||||
Standard Configuration | 2 shelves | ||||
