1. The low temperature range is wide, and the temperature can be freely selected from -20°C/-40°C/-60°C/-70°C to +150°C.
2. Humidity range can be selected from 10%-98%RH or 20%-98%RH.

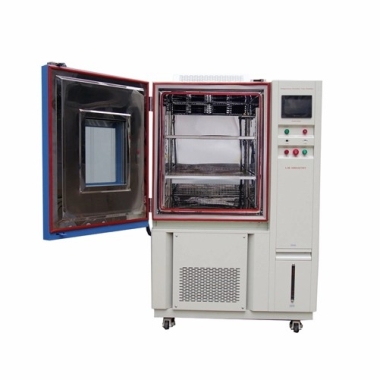

3. The thermal test chamber can be combined with vibration, low air pressure and other environmental conditions. A variety of comprehensive environments can meet the diverse testing requirements of customers.
4. There are standard products and customized products for the thermal test chamber. The delivery time of customized products is fast, and engineers will go to the site for installation and training. The environmental temperature chamber is simple and easy to operate.
Model | STD T-100 | STD T-225 | STD T-500 | STD T-1000 |
Internal Dimension (mm) | 400*500*500 | 500*600*750 | 700*800*900 | 1000*1000*1000 |
Overall Dimension (mm) | 900*1050*1620 | 1000*1140*1870 | 1200*1340*2020 | 1500*1540*2140 |
Interior Volume | 100L | 225L | 500L | 1000L |
Heat load | 1000W | |||
Temperature Range | A : -20℃ ～ +150 ℃ B : -40℃ ～ +150 ℃ C: -70℃ ～ +150 ℃ | |||
Temperature Fluctuation | ± 0.5 ℃ | |||
Temperature Deviation | ± 2.0 ℃ | |||
Cooling Rate | 1 ℃ / min | |||
Heating Rate | 3 ℃ / min | |||
Cooling system | Mechanical compression refrigeration system | |||
Refrigerating unit | French TECUMSEH compressor | |||
Heating Element | Nichrome heater | |||
Controller | Programmable color LCD touch screen controller, Ethernet connection | |||
Water supply system | Automatic water supply, Water purification system | |||
Safety Device | Over-temperature protection; Over-current protection; Refrigerant high-pressure protection; Earth leakage protection | |||
Qinsun Instruments Co., LTD is a professional laboratory testing instrument manufacturer in China,Have been focusing on laboratory instrument R&D more than 30 years and have rich industry experience,Based on international testing standards,We are also the instrument supplier for BV SGS laboratory,We provide one-stop solutions for lab instruments,Free Training and Turn-Key Service,Products exported all over the world,Offer 36 month warranty and are a trustworthy partner.
