Features and Benefits1. The capacity and performance of the workroom can be adjusted according
WhatsApp : +86 13816217984
Email : info@qinsun-lab.com
1. The capacity and performance of the workroom can be adjusted according to the size of the photovoltaic panel and your needs.
2. The control of temperature and humidity is very accurate, and the temperature and humidity deviation of ± 2.5%RH and ± 2.0 ℃ can be reached in the workroom with large space.
3. The sample holder can be customized, including the angle of the photovoltaic panel, the number of tests, etc.
4. PV-panels testing devices can test in accordance with relevant international standards and regulations to ensure that photovoltaic panel products meet market access requirements.

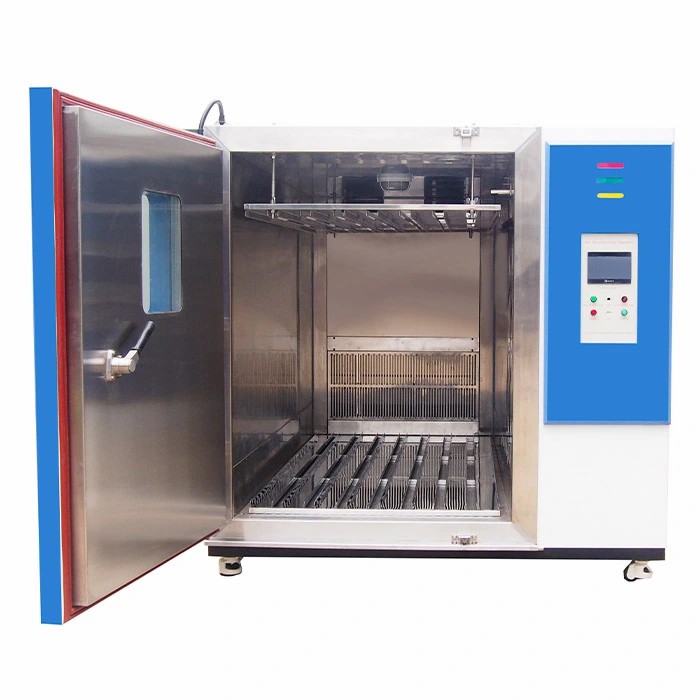

Model | STD PV-04 | ||
Internal Dimension (mm) | 1300*700*1350 | ||
Overall Dimension (mm) | 1900*1100*1750 | ||
Interior Volume | 1220L | ||
Parameter | Temperature Range | -60℃ ～ +100 ℃ | |
Temperature Fluctuation | ± 0.5 ℃ | ||
Temperature Deviation | ± 2.0 ℃ | ||
Humidity Range | 20% ~ 98% RH | ||
Humidity Deviation | ± 2.5% RH | ||
Temperature Change Rate | 1 ~ 3.4℃ / Min | ||
Panel Size | 1M*2M | ||
Panel Capacity | 4 / 6 / 8 / 10 / 12 Pieces | ||
Controller | Programmable color LCD touch screen controller | ||
Ethernet connection, PC Link, USB | |||
Humidity | Water supply system | Automatic water supply | |
Water supply system | Water purification system | ||
Humidifier | External isolation, stainless steel surface evaporation humidifier | ||
Dehumidification | Evaporator | ||
Sensor | Temperature Sensor | PTR Platinum Resistance PT100Ω/MV A-class, accuracy 0.001℃ | |
Humidity Sensor | Dry and wet bulb sensor | ||
Build-in Water Tank(mm) | 270*300*450 | ||
View Window Size(mm) | 330*370 | ||
Air Circulation | Centrifugal wind fan | ||
Safety Device | Humidifier Dry-combustion Protection; Over-temperature Protection; Over-current Protection; Refrigerant High-pressure Protection; Water Shortage Protection; Earth leakage Protection | ||
