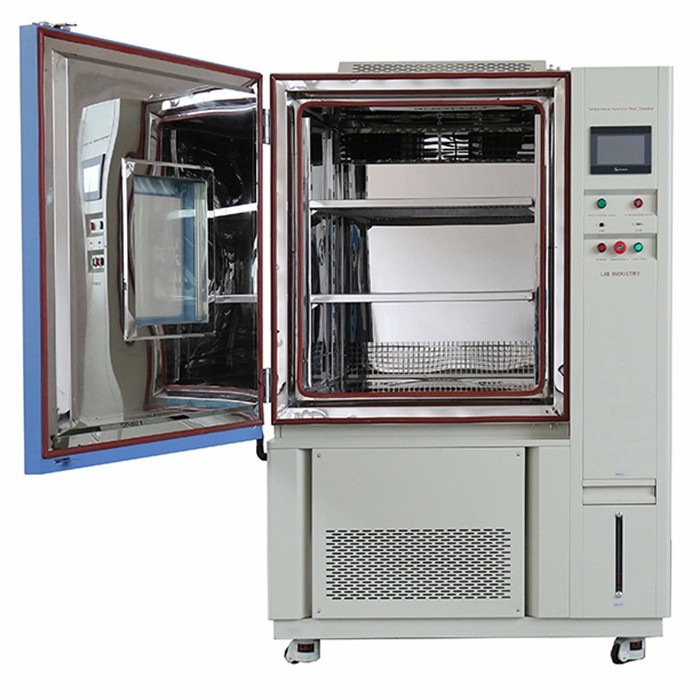

Thermal Humidity Chamber

Features and Benefits1. A variety of temperature and humidity change modes are supported, such

WhatsApp : +86 13816217984

Email : info@qinsun-lab.com

Content

Features and Benefits

1. A variety of temperature and humidity change modes are supported, such as linear rise cooling/humidity, step jump cooling/humidity, etc., to meet different test requirements.

2. The use of high-quality insulation materials, reduce the loss of heat and humidity, reduce energy consumption and keep temperature and humidity stable.

3. Users can accurately set temperature, humidity, time and other parameters according to different test requirements to ensure the consistency and repeatability of test conditions.

4. It has overload protection, short circuit protection, pressure protection, etc., and also has fault self-diagnosis and alarm function to ensure the safety of equipment and personnel.

Specifications

Model

STD TH-100

STD TH-225

STD TH-500

STD TH-1000

Internal Dimension (mm)

400*500*500

500*600*750

700*800*900

1000*1000*1000

Overall Dimension (mm)

900*1050*1620

1000*1140*1870

1200*1340*2020

1500*1540*2140

Interior Volume

100L

225L

500L

1000L

Heat load

1000W

Temperature Range

A : -20℃ ~ +150 ℃

B : -40℃ ~ +150 ℃

C: -70℃ ~ +150 ℃

Temperature Fluctuation

± 0.5 ℃

Temperature Deviation

± 2.0 ℃

Humidity Range

20% ~ 98% RH

Humidity Deviation

± 2.5% RH

Cooling Rate

1 ℃ / min

Heating Rate

3 ℃ / min


Disclaimer: The above content is for reference and communication only among industry insiders, and does not guarantee its accuracy or completeness. According to relevant laws and regulations and the regulations of this website, units or individuals who purchase related items should obtain valid qualifications and qualification conditions.
