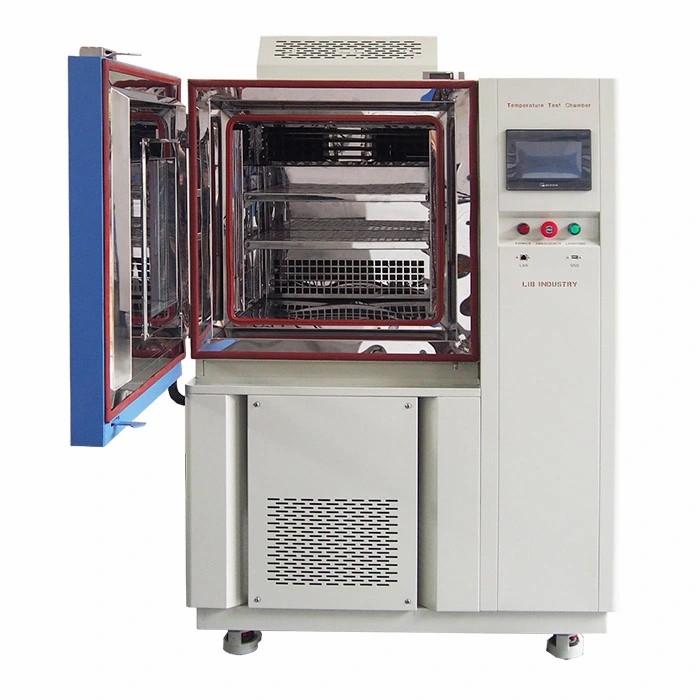

1. Hot cold chamber can range from very low temperatures ( -70 ° C or lower) to high temperatures (+180 ° C or higher) to simulate a variety of extreme environments.
2. The internal temperature field is uniform, so that the sample is heated or cooled to a similar degree in temperature control chamber.
3. Precise temperature control and uniformity ensure reliable and repeatable test results, providing a strong basis for product improvement.
4. Hot cold chamber can highly simulate the alternating cold and hot environment that the product may encounter in actual use, such as the working condition of electronic products in desert high temperature and polar low temperature.
Model | STD T-100 | STD T-225 | STD T-500 | STD T-1000 |
Internal Dimension (mm) | 400*500*500 | 500*600*750 | 700*800*900 | 1000*1000*1000 |
Overall Dimension (mm) | 900*1050*1620 | 1000*1140*1870 | 1200*1340*2020 | 1500*1540*2140 |
Interior Volume | 100L | 225L | 500L | 1000L |
Heat load | 1000W | |||
Temperature Range | A : -20℃ ～ +150 ℃ B : -40℃ ～ +150 ℃ C: -70℃ ～ +150 ℃ | |||
Temperature Fluctuation | ± 0.5 ℃ | |||
Temperature Deviation | ± 2.0 ℃ | |||
Cooling Rate | 1 ℃ / min | |||
Heating Rate | 3 ℃ / min | |||
Cooling system | Mechanical compression refrigeration system | |||
Refrigerating unit | French TECUMSEH compressor | |||
Heating Element | Nichrome heater | |||
Controller | Programmable color LCD touch screen controller, Ethernet connection | |||
Water supply system | Automatic water supply, Water purification system | |||
Safety Device | Over-temperature protection; Over-current protection; Refrigerant high-pressure protection; Earth leakage protection | |||
