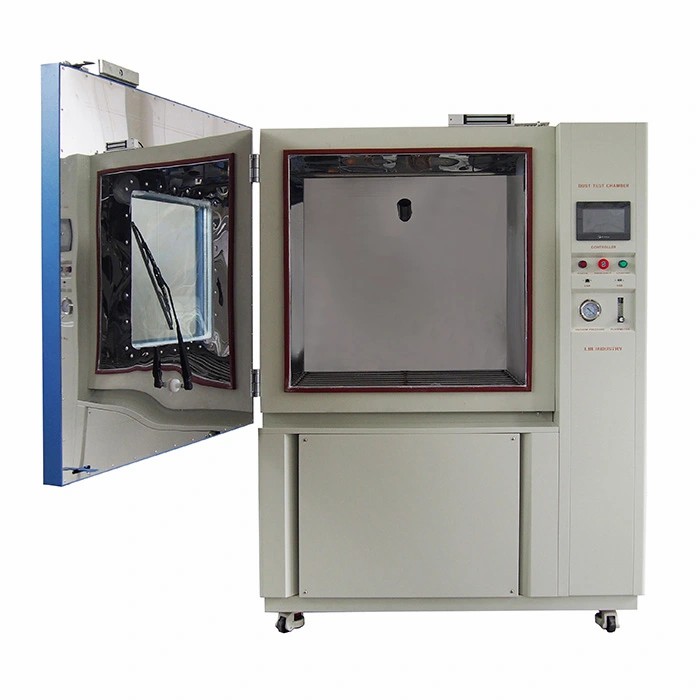

1. As one of leading dust chamber suppliers, our Dust Test Chambers are from 800L, 1000L, 1500L to 2000L, a variety of models are available. In addition, the size and performance can be customized according to the customer's needs.
2. A wide range of Dust Test Chambers meet various standards such as IEC60529 IP5X, IP6X and MIL-STD-810.
3. The dust ingress test chamber is easy to operate, can be programmed according to the requirements for automatic operation, can be connected to the computer and the laboratory operating system, so as to achieve integrated and remote control.
4. After effectively communicating with the customer about the test requirements, the model can be accurately determined and the product can be delivered quickly.
Model | STD DI-800 | STD DI-1000 | STD DI-1500 | STD DI-2000 |
Internal Dimension (mm) | 800*1000*1000 | 1000*1000*1000 | 1000*1500*1000 | 1000*2000*1000 |
Overall Dimension (mm) | 1040*1450*1960 | 1330*1450*1960 | 1330*1950*1990 | 1330*2450*1990 |
Useful Volume (L) | 800 | 1000 | 1500 | 2000 |
Temperature Range | Ambient ~ +50℃ | |||
Humidity Range | < 30% RH | |||
Normal Wire Diameter | 50um | |||
Nominal Width of a Gap Between wires | 75um | |||
Fight Time | 0 ~ 99H59M | |||
Blowing Time | 0 ~ 99H59M | |||
Specimen Power Outlet | Dust-proof socket 16A | |||
Controller | Programmable color LCD touch screen controller, Ethernet connection | |||
Safety Device | Over-temperature Protection; Over-current Protection; Earth Leakage Protection; Phase Sequence Protection | |||
Exterior Material | A3 Steel Plate with protective coating | |||
Interior Material | SUS304 stainless steel | |||
Standard Configuration | Sample shelf, dust wiper, talcum powder(5kgs) | |||
Power | AC380V 50Hz | |||
Qinsun Instruments Co., LTD is a professional laboratory testing instrument manufacturer in China,Have been focusing on laboratory instrument R&D more than 30 years and have rich industry experience,Based on international testing standards,We are also the instrument supplier for BV SGS laboratory,We provide one-stop solutions for lab instruments,Free Training and Turn-Key Service,Products exported all over the world,Offer 36 month warranty and are a trustworthy partner.
