Wyzenbeek Abrasion Tester

Wyzenbeek Abrasion Tester StandardASTM D4157：Standard Test Method for Wear Resistance of Textiles (S

WhatsApp : +86 13816217984

Email : info@qinsun-lab.com

Wyzenbeek Abrasion Tester Standard
ASTM D4157：Standard Test Method for Wear Resistance of Textiles (Swing Roller Method)

Applications

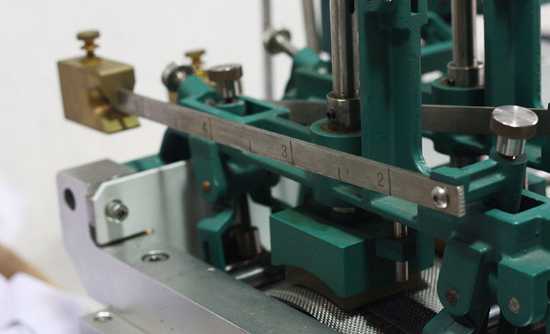

Oscillator Abrasion Tester is also named as Wyzenbeek Abrasion Tester, used to determine the abrasion resistance of fabrics when rubbed against a standard abradant or a wire mesh screen in a backward and forward motion over a curved surface. Particularly it’s suitable for abrasion resistance of fabrics used in the automotive and furniture industry. The instrument follows the U.S. standard with four friction heads and electronic counters to control the operating cycle.



Work Principle
The long strip sample fabric is mounted on the front and rear fixtures of the friction head with a certain tensioning force applied.The friction medium is installed on the circular grinding platform. Make the sample contact with the friction medium and apply a certain load on the sample.The friction platform moves forward and backward to abrade the sample.After a certain number of friction, assess the change of sample's fracture strength.

Features
1. Modern efficacy design.
2. The suction device is connected to an auxiliary vacuum cleaner.
3. Sealed gear actuator ensures quiet operation.

Technical Parameters

Test number	4
Abrasion table	Cambered surface -R100mm，Length-400mm
Test stroke	76±2 mm
Abrasion velocity	90±1 /min（double  friction）
Tension adjusting weights	340g (The force applied to the sample can be adjusted from 4.45 to 26.7 N)
Load weight	150g (adjusted from 4.45 to 15.575N)
Tension  of  sample	17.8N（adjustable）
Sample loading	13.4N（adjustable）
Sponge rubber pressure pad	50×50mm（±1mm）
Instrument material	Stainless steel
Surface treatment	Paint spraying
Sample size	245×73 mm
Dimension	50L× 50W × 60H cm
Weight	75kg
Power supply	220V，50Hz，0.05A

Accessories and Consumables:
Rubber pad (8 / bag)

Metal mesh - Wyzenbeek (4 / bags)

Standard abradiant #10 cotton canvas - 60 inch x 5 yards

Fine sandpaper for cleaning rubber pad

Nylon brush, soft fur
