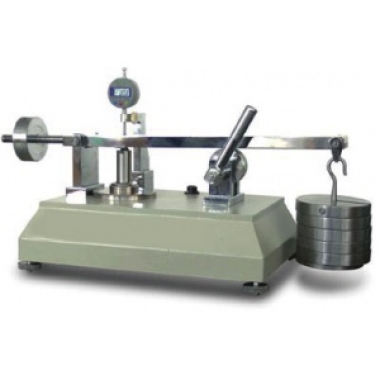

Geotextile thickness meter

Instructions:

1. in the carpet test, in order to test the thickness and compression recovery, the instrument can provide a presser foot and a set of weights in order to provide 2-200 kpa pressure. In the non-woven testing, the need to provide a different specifications of the presser foot.

2. the test results displayed on the digital indicator, the indicator can automatically return to zero.

3. the standard thickness gauge can measure the thickness of 25 mm of the sample, which can provide a flexible solution for different applications. For samples with a thickness of more than 25 mm, other thickness gauges can be selected.

Fabric thickness tester mainly used to measure the thickness of the fabric, suitable for leather, rubber and textiles and other materials, the thickness of the measurement, to detect the standard situation.

Standards compliant:

ISO 1765: 1986. ISO 1766: 1999 (BS), BS 4051: 1987 (1996), BS 4098: 1975 (1996), BS 5808: 1991 (1996), Wools of New Zealand test method 142

Main feature:

1. for the test carpet, lining, non-woven, geotextile to provide ISO and BS standard pressure

2. the instrument design to meet the needs of different test standards

3. can be directly associated with the optional software

4. a wide range of applications: carpet thickness, carpet and the backing of the compression and elastic recovery, non-woven fabrics, foam, geotextile, etc.

Technical Parameters

1.

Presser Foot Configuration

Base presser foot: 56.4mm diameter (25cm² area) round presser foot

Pressure system: Initial pressure 5N (2kPa), adjustable to 20kPa ± 0.1kPa and 200kPa ± 1kPa

2.

Measuring System

Digital indicator range: 0-25mm, minimum graduation 0.01mm

Stopwatch accuracy: ±0.01 second

3.

Overall Dimensions: Approximately 300 × 200 × 450mm (L × W × H)

Weight: Approximately 25kg
