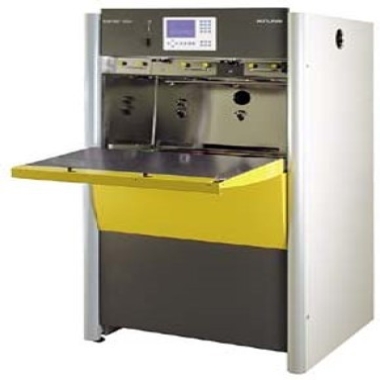

Atlas SUNTEST XXL+

Atlas SUNTEST XXL+is a large xenon lamp weathering and photoaging tester that complies with various ISO, ASTM, and ICH industry standards. The exposed area of 3000 cm2 on its horizontal plane is an ideal choice for 3D sample testing.

SUNTEST XXL+is used to detect short-term changes in the characteristics of materials and products caused by sunlight, temperature, and moisture. The changes that occur in the product outdoors or indoors, such as fading, yellowing, or strength loss, may take several months or years, while in a SUNTEST testing instrument, it often only takes a few weeks to simulate.

Advantage:

According to CIE85 advanced solar radiation simulation

Optional filters, used to simulate sunlight passing through window glass, etc.

Excellent test chamber design for testing 3D samples

Easy to use touchscreen user interface with 13 language options

Preset standards for convenient and quick startup settings

Equipped with openings for easy connection of additional external sensors

Black label temperature sensor (BST) compliant with ISO 4892-1 standard

Automatic irradiance control to meet different testing requirements

Characteristic:

Size 90 x 91 x 172 cm

Exposed area 79 x 39 cm (3000 cm2)

3 air-cooled 1700 watt xenon lamp tubes

Easy to use touchscreen user interface with 13 language options

Directly set and control the irradiation intensity (300-400 nanometers or 340 nanometers)

Directly set and control the black label temperature (BST) or blackboard temperature (BPT)

Directly set and control the box temperature (CHT)

Directly control the tolerance range of each test parameter, optimized test control

Display diagnostic information

10 programmable tests, each containing up to 12 stages

Pre set polymer and coating standards for easy and quick access

Horizontal exposure area of 3000 cm2 for 34 standard or multiple 3D samples

According to CIE85 advanced daylight simulation

Lamp box equipped with aluminum reflector, lamp tube connector, and filter slot

External filter with infrared reflective coating

The irradiation control range is 30-65 W/m2 (300-400 nanometers); 0.26-0.62 W/m2 (340 nanometers)

Measure and control CHT: Temperature Max70 ° C (brightness cycle)

Measure and control BST or BPT: Temperature Max100 ° C (brightness cycle)

Design of BST sensor in accordance with ISO 4892-1

Temperature control can be selected through CHT or dual control: simultaneously control CHT and BST (BPT)

Control temperature difference between CHT and BST (BPT)

Ultrasonic humidification system for humidity control

Sample spray system with 60 liter water tank

Tilt the sample testing plane at a 5-degree angle to facilitate the flow of spray water

Approximately 30 x 25 mm inlet port, connected to internal sensors of the test chamber

End the experiment based on exposure to sunlight, exposure time, or total operating time

Advanced automatic start function

Output data through memory card or RS 232 interface

Internal storage chip for storing tool data

Connect to the network through Ethernet interface, refer to optional XenoTouch software attachments 1. 2. and 3 ("Remote Control", "Email Service", "Online Monitoring")
