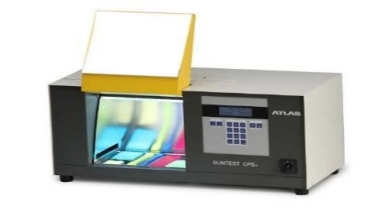

Atlas SUNTEST CPS+

A practical desktop xenon lamp equipment with various accessories, customized to meet your SUNTEST needs. Here, you can see SunCool cooling device (for drugs/cosmetics), SunTray sample exchange device (for in vitro sun protection factor), and SunFlood soaking device (for coatings/sealants)

SUNTEST CPS+is used to detect short-term changes in the properties of materials caused by sunlight, temperature, and moisture. The changes that occur in the product outdoors or indoors for several months or years, such as fading, yellowing, or brittleness, can usually be simulated using SUNTEST testing instruments within a few weeks.

Advantage:

According to CIE85 advanced solar radiation simulation

Optional window glass filters to filter sunlight, etc

Simple and user-friendly interface, available in 11 languages

Pre set 300 hours of testing, convenient for quick startup settings or customized testing as a template

Black label temperature sensor (BST) compliant with ISO 4892-1 standard

Automatic irradiance control to meet different testing requirements

Accessories:

SunFlood immersion device convenient for testing under extreme humidity conditions

SunCool cooling device, used for testing in low-temperature environments (such as cosmetics)

Special order:

Desktop design size 90 x 35 x 35 cm

28 x 20 cm (560 cm2) exposed area

1 air-cooled 1500 watt xenon lamp tube

Microprocessor control, equipped with programming keyboard and black and white display panel

Directly set and

Control irradiation intensity (300-400 nanometers or 300-800 nanometers)

Directly set and control the black label temperature (BST)

Display the temperature of the test chamber (CHT)

Display test values and diagnostic information

Parameter check

Two pre programmed testing methods plus six user-defined tests

Multi language support: English, German, Italian, French, Spanish, Polish, Russian, Chinese

The horizontal testing area reaches Max560 cm2. suitable for flat or 3D samples

Advanced daylight simulation based on CIE85

The irradiation control range is 30-65 W/m2 (300-400 nanometers); 250-765 W/m2 (300-800 nanometers)

Long term coated quartz filtration system and selective reflector

End Test Mode: Exposure or Test Time

Output data through serial interface RS 232
