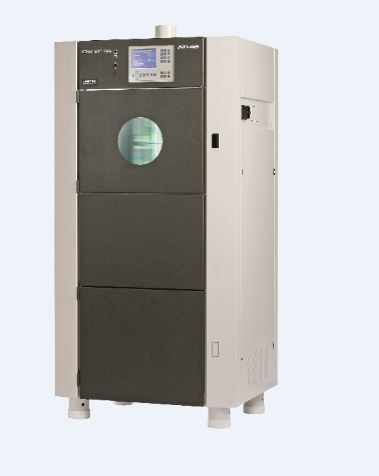

Qinsun Xenotest 220
Xenotest 220 and Xenotest 220+are high-capacity light aging testers used for textile testing. Equipp
WhatsApp : +86 13816217984
Email : info@qinsun-lab.com
Content
Standards
- ISO 105-B02: Lightfastness testing for colored textiles.
- AATCC TM16 (Option 3): Accelerated weathering for textiles under controlled conditions.
- Marks & Spencer C9/C9A: Retail-specific durability protocols for apparel and home textiles.
Product Advantages
- Unmatched Capacity:
- Tests 38 samples simultaneously, doubling the throughput of the 150 S+ model within the same footprint.
- Optimized for high-volume testing without compromising precision.
- Cost Efficiency:
- Air-cooled design reduces energy consumption by 30% compared to water-cooled alternatives.
- 60-liter integrated water tank minimizes refill frequency for ultrasonic humidification.
- Precision Control:
- Direct adjustment of irradiance (300–400 nm), black label temperature, chamber humidity, and airflow.
- Dual temperature control (up to 100°C) for black label and chamber, managed via fan-assisted differential regulation.
- User-Centric Design:
- 220+ Model: Color touchscreen interface with multi-language support (10+ languages) and 10 programmable test presets.
- Advanced Diagnostics: Real-time error alerts and internal data logging via storage chip.
- Compliance & Versatility:
- Preconfigured for ISO and AATCC standards, with customizable end-of-test triggers (sunlight exposure, runtime, or illumination dose).
Product Features
Illumination System:
- 2200W air-cooled xenon lamp tube for stable UV-A to visible light output.
- Long-life filter technology ensures consistent spectral distribution (300–400 nm) over 1,500+ hours.
- Sample Handling:
- XENONSENSIV® Sample Rack: Holds 19 containers (38 textile samples) with integrated sensors for irradiance (W/m²) and black label temperature (°C) monitoring.
- Climate Control:
- Ultrasonic humidification with automatic water replenishment.
- Relative humidity range: 10%–70% RH (non-condensing).
- Connectivity:
- Ethernet & RS232 interfaces for data export.
- XenoTouch Attachments: Remote monitoring, email alerts, and cloud integration (Optional 1/2/3).
- Safety & Durability:
- UV-blocking observation window for safe sample inspection.
- Robust construction with corrosion-resistant materials for industrial environments.
Technical Parameters
| Specification | Details |
|---|
| Lamp Type | 2200W air-cooled xenon arc |
| Exposure Area | 310 cm² (48 in²) |
| Irradiance Control | 300–400 nm, adjustable via touchscreen (220+) |
| Temperature Range | Chamber: 30–65°C (86–149°F) / Dual: 30–100°C |
| Humidity Range | 10%–70% RH (non-condensing) |
| Power Supply | 230V, 50/60Hz, 25A |
| Dimensions (W×D×H) | 900 × 750 × 1,800 mm |
| Weight | 320 kg (705 lbs) |
Accessories & Options
XenoTouch 1/2/3:
- Remote control, real-time email alerts, and web-based monitoring.
- Dual Temperature Control Kit:
- Simultaneous management of chamber and black label temperatures.
- Extended Warranty:
- 3-year coverage for lamp, filters, and electronics.
- Custom Filter Sets:
- Tailored spectral ranges for specialized textiles (e.g., UV-enhanced for outdoor fabrics).
