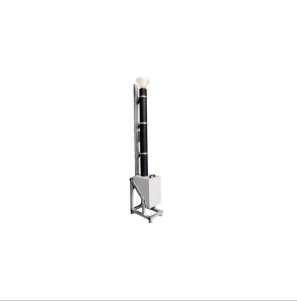

Falling Sand Abrasion Tester

The falling sand abrasion tester is used to test the abrasion resistance of coatings under standard conditions. This method tests the abrasion resistance of a coating by dropping abrasive material through a tube from a specified height onto a coated test panel until the substrate of the panel is exposed and visible.

Application

Helmet abrasion resistance sand test machine is mainly used to test motorcycle helmets, sports helmets, electric vehicle helmets, fire helmets, rescue helmets, military and police helmets, pilot helmets and other helmets eye protection performance. Widely used in a variety of helmets related to the production of research and development, scientific research, quality supervision and testing, colleges and universities laboratories and other units.

Standards

(1)GB811-2022: Helmets for motorcycle and electric bicycle users

(2)GB24429: Sports helmets — Safety requirements and test methods for helmets used in bicycling, skateboarding, roller skating

(3)GJB1564A: General specifications for flight protective helmets

(4)GA293: Ballistic helmets and face shields for police

(5)GA294: Police anti-riot helmets

(6)GA295: Motorcycle helmets for police

(7)GA296: Service helmets for police

(8)ASTM D968: Standard Test Methods for Abrasion Resistance of Organic Coatings by Falling Abrasive

Features

(1)The speed regulator can carry out the adjustment of the sample speed, and real-time display.

(2)Sand fall gravity tube has three sections of PVC, acrylic or stainless steel tube.

(3)Conical sand drop storage port, easy to store the sand drop.

(4)The conical design structure at the bottom of the equipment and the low falling disk are convenient to collect the falling sand.

Parameters

Accessoriess

(1)Funnel device

(2)Sand guide tube

(3)Sample holder

(4)Rotating workbench, etc.

Test Procedures

Preparation of test specimens: Prepare test specimens according to standard requirements and condition them at (23±2)℃ and (50±5)% relative humidity for 24 hours.

Instrument calibration: Pour a predetermined amount of sand into the funnel, check the sand flow falling from the lower end of the guide tube, and calibrate the device using the bottom adjustment screw until the center of the sand stream is precisely centered when viewed from two positions 90 degrees apart.

Parameter setting: Set the corresponding test parameters according to the test specifications, including the sand falling speed, time, and the type and particle size of the abrasive sand.

Testing process: Install the sample in the test position of the instrument, start the equipment, and allow the abrasive sand to fall onto the sample surface and cause friction and abrasion.

Data recording: After the test, remove the sample, carefully clean it, and record the change in sample mass to calculate the wear amount.

Results analysis: Analyze the test results, evaluate the wear resistance of the material, and compare it with relevant standards or requirements to generate the final test report.
