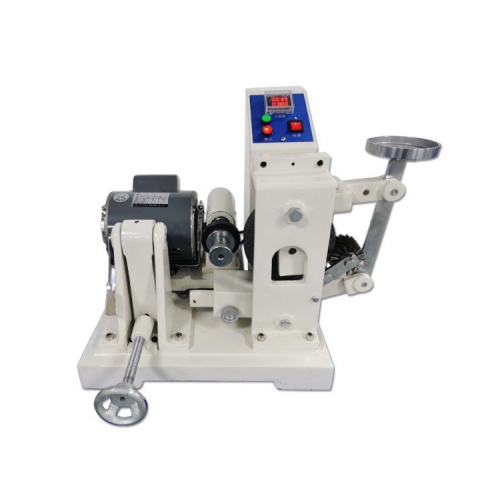

AKRON abrasion testing machine

AKRON wear testing machine is used with the balance, specially testing the wear resistance of rubber products such as soles, tires, car tracks, etc. The counters are electronic automatic, which can set the wear revolution, and automatically stop when the set revolution is reached.

Application

The AKRON abrasion testing machine/rubber Akron abrasion tester is used to determine the abrasion resistance of rubber products or vulcanized rubber, such as shoe soles, tires, and vehicle tracks, in order to evaluate the performance of the tested product.

Standard

GB/T 1689 : Rubber vulcanized—Determination of abrasion resistance (Akron machine)

ISO:4661-1:1993: Rubber, vulcanized or thermoplastic - Preparation of samples and test pieces - Part 1: Physical tests

ISO 2481:1988: Rubber, vulcanized—Determination of density

ISO 471:1983: Rubber—Standard temperatures, humidities and times for the conditioning and testing of test pieces

ISO 1826:1981: Rubber, vulcanized—Time-interval between vulcanization and testing—Specification

Test size

Outer diameter 2 ", inner diameter 1/2 ", thickness 1/2 ", circumference 220mm, hardness 60——70

Feature

High-precision measurement: Utilizing advanced sensor technology and precise mechanical structures, the machine can achieve accurate measurement of material wear, providing reliable data support.

Diverse testing modes:  Supports multiple testing modes, including dry abrasion, wet abrasion, and grinding wheel abrasion, to meet the testing needs of different materials and application scenarios.

Automated operation: Modern wear testing machines are typically equipped with an automated control system, which can automatically complete the testing process, reducing human error and improving testing efficiency.

User-friendly interface: The equipment features an intuitive digital control panel or computer software, allowing users to easily set test parameters, monitor the testing process, and obtain test results.

Wide range of applications: Wear testing machines are suitable for testing the wear resistance of various metal materials, non-metallic materials, and composite materials, and are widely used in materials science, mechanical engineering, aerospace, and other fields.

Parameters

Accessoriess

Grinding wheel

Rubber wheel

Weights/Loading device

Counter

Sample holder

Angle adjustment device

Power cord and power switch

Test Procedures

1. Prepare the core of the specimen according to the conditions of obtaining the specimen. And record its exact weight.

2. Fix the specimen core on the core shaft seat, and then adjust the Angle of the specimen. (Usually set to 15∘)

3. Different test methods are divided into high standards and low standards according to material requirements.

High standard requirements:

a. Angle (the Angle between the test piece and the grinding wheel)15∘

b. Load :6 pounds

c. Pre-grinding revolutions :300 revolutions

d. Remove the specimen core, brush with a clean brush to remove the powder, then weigh the exact weight with a precision balance, and record the weight of the sample before the test

e. Install the specimen core and set the wheel rotation times :3000 revolutions

f. After the wear is completed, remove the specimen, brush with a clean brush to remove the powder, and then weigh the accurate weight with a precision balance, which is the weight of the sample after the test

g. Substitute the formula to calculate the grinding amount

Low standard requirements:

a. Angle (the Angle between the test piece and the grinding wheel)15∘

b. Load :2 pounds

c. Pre-grinding revolutions :200 revolutions

d. Remove the specimen core, brush with a clean brush to remove the powder, then weigh the exact weight with a precision balance, and record the weight of the sample before the test

e. Load back the specimen core and set the wheel rotation times :2000 revolutions

f. After wearing, remove the specimen, brush with a clean brush to remove the powder, and then weigh the exact weight with a precision balance

This is the test weight after the test

g. Substitute the formula to calculate the grinding amount

4. After all specimens have been tested, remove the weight and store it, and remove the debris on the machine.

Wear value calculation method:

Wear (volume m1)== Weight before test - weight after test

Specific gravity algorithm:

a. If the test material is heavier than water

Specific gravity = Weight in air ÷(weight in air - weight of sample in water)

b. If the test material is lighter than water

Specific gravity = weight in air ÷ volume
