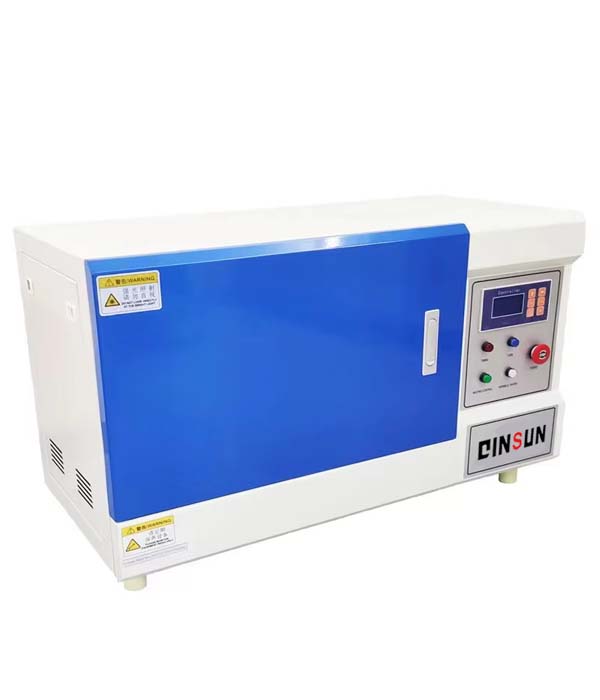

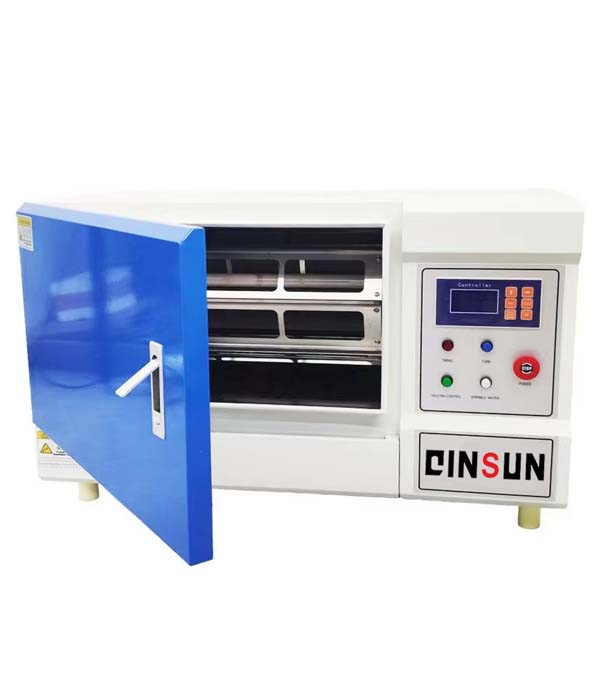

Bench UV Accelerated Aging Chamber

Application：

Bench-top UV Light Accelerated Aging Test Chamber is suitable for accelerated aging test through ultraviolet light, temperature and water exposure, used to predict the relative durability of non-metallic materials such as coating film, plastic, rubber, etc., especially suitable for observing the physics of particularly durable materials The degree of performance damage, such as reduced gloss, haze, reduced strength, chalking, cracking, blistering, embrittlement, and color fading.

Paint Industry: For testing various coatings, including:

Hull paint

Marine waterline paint

Deck paint

Solvent-based polyurethane wood paint for interior decoration

Water-based wood paint for interior decoration

UV-curing wood paint

Pre-coated coil coatings for home appliances

Indoor water-based wood coatings

Coil coatings

Architectural water-based fluorine coatings

Other Industries:

Automotive Industry: For evaluating paint and coatings.

Plastic Products: To assess UV degradation and durability.

Wood Products: Testing finishes and coatings for weather resistance.

Glue: To determine the effects of UV exposure on adhesive performance.

Like all artificial weather accelerated aging test equipment, the test results obtained by the desktop UV fluorescent ultraviolet aging test chamber cannot replace natural exposure to determine the actual durability of the material, but this instrument can provide a reliable relative test result, which is very useful for quick evaluation. Anti-aging properties of materials, screening or improving new and old formulas, and monitoring product quality are more practical.

Main Performance：

The Bench-top UV Light Accelerated Aging Test Chamber uses three 20W fluorescent ultraviolet lamps with a wavelength of 313nm as the experimental light source. During the test, basic parameters such as total light time, temperature in the box, and spray time can be set to simulate the nature of the outside world. The damage caused by the environment is used to evaluate the weather resistance of the model.

The all-stainless steel sandwich liner design will never rust and leak water, while effectively preventing water vapor in the working room from penetrating into the electrical part and damaging the electronic components.

Built-in water level switch, the machine will alarm and stop automatically when the water level is low.

Use the ultraviolet lamp tube produced by a professional company, the irradiation energy is high: the new lamp tube can reach 0.9W/m2.

The touch screen man-machine interface directly sets various parameters required for the test, and it is convenient to check the parameter running status during the test at any time.

Standards：

ASTM D4587: "Conducting Fluorescent UV Condensation Exposure Tests for Paints and Related Coatings"

ASTM D5894: "Painted Metals"

ASTM G154: "Standard for Fluorescent UV/Water Exposure of Non-Metallic Materials"

ASTM D4329: "Standard for Fluorescent UV/Water Exposure of Plastics"

SAE J2020: "Accelerated Exposure Standard for Automotive Exterior Materials"

ISO 11507: "Artificial Weathering Exposure of Paints and Varnishes Coatings Exposure to Fluorescent Ultraviolet Light and Water"

ISO EN 4892-3: "Plastics. Methods of Exposure to Laboratory Light Sources. Part 3: UV Fluorescent Lamps"

GB/T 14522: "Artificial Climate Accelerated Test Method for Plastics, Coatings, and Rubber Materials for Machinery Industry Products"

GB/T 23983: "Determination of Yellowing Resistance of Wood Coatings"

GB/T 23987: "Artificial Weathering Exposure of Paints and Varnishes Coatings Exposure to Fluorescent Ultraviolet Light and Water"

GB/T 16422.3: "Exposure Method of Plastic Laboratory Light Source Test: Part 3: Fluorescent Ultraviolet Lamp"

Technical Parameters：

Performance features:

Cost-Effective Lamps: Domestic UVA or UVB lamps are priced at less than 1/5 of the cost.

Spray and Temperature Function: The chamber includes spray and temperature control functions.

Test Standards Compliance: The chamber complies with various domestic and international test standards, with the ability to set different test procedures as needed.

Real-Time Data Acquisition: Test data is automatically generated in Excel format, recorded, and saved. It can be exported via a USB drive, enabling truly unattended operation.

Remote Monitoring: The chamber features a standard TCP/IP Ethernet interface, allowing users to remotely monitor the machine's status through a network.

Touch Screen Operation: The touch screen provides an easy-to-use, user-friendly interface, allowing users to view any parameter during the test at any time.

Precision Temperature Control: The chamber is equipped with a high-precision Pt 100 temperature sensor and automatic temperature control for accurate results.

1、UV Accelerated Weathering Tester
