Industrial Tunnel Ovens | Drying Tunnel Furnaces

The Industrial Automation Tunnel Oven is a continuous drying or heating system that utilizes heat conduction, convection, and radiation to process materials. Materials enter via a conveyor belt at one end and exit at the other after undergoing preheating, high-temperature heating, and cooling. Ideal for high-volume assembly line production, these ovens are widely used in applications such as electronic component curing, new energy motor stator/rotor processing, lithium battery drying, solar PV module manufacturing, heat treatment for hardware and chemicals, carbon fiber composite molding, medical glassware sterilization, IGBT module packaging, OBC burn-in testing, and potting/dispensing/curing processes.

Equipment Selections:

1. Heating Method:

Common options include electric heating, gas heating, infrared heating, and hot air circulation; the choice depends on the material's temperature tolerance and cost considerations.

2. Temperature Control Capability:

Consider temperature uniformity and fluctuation range; for instance, requirements within ±2°C are better suited for precision electronics or chemical applications.

3. Oven Structure:

Factors include oven length and width, inner chamber material (stainless steel or galvanized sheet), and insulation thickness, all of which impact durability and energy consumption.

4. Conveyor System:

Options include mesh belts, chain plates, or roller conveyors; the system must match the material's dimensions, weight, and production cycle time.

5. Customization and After-Sales Service:

Opt for non-standard customization if there are space constraints or specific process requirements, and verify the availability of spare parts and training services.

Wide Range of Applications:

1. Electronics Manufacturing: Curing of electronic components, drying of printed circuit boards (PCBs), curing of electronic adhesives, component burn-in testing, etc.

2. New Energy Products: Processing of stators/rotors for new energy motors, processing of solar photovoltaic modules, sintering of lithium battery materials, etc.

3. Chemical Industry: Drying of chemical powders, processing of polymer materials, molding of carbon fiber composites, etc.

4. Other Industries: Curing of automotive part coatings, sintering of ceramics and glass, sterilization of medical glassware, metal annealing, heat treatment of hardware components, etc.

Tunnel Furnaces  (The following is a partial list; please email us regarding any specific requirements):

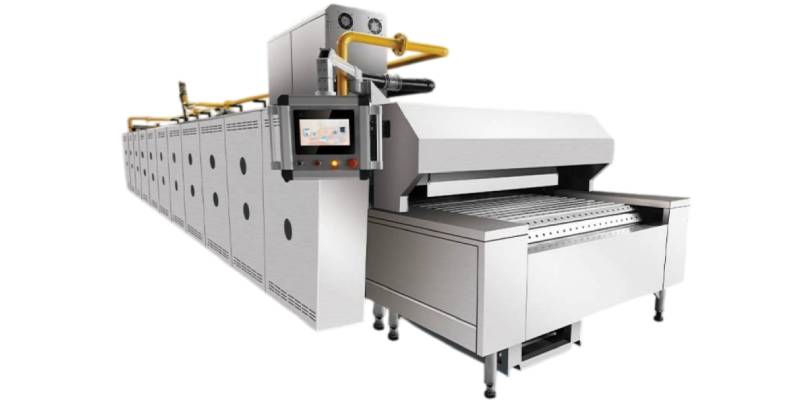

Baking Tunnel Ovens

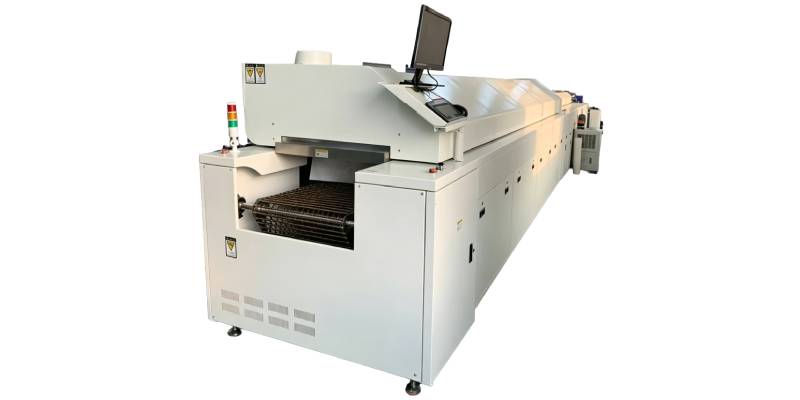

Conveyor Vacuum Reflow Oven

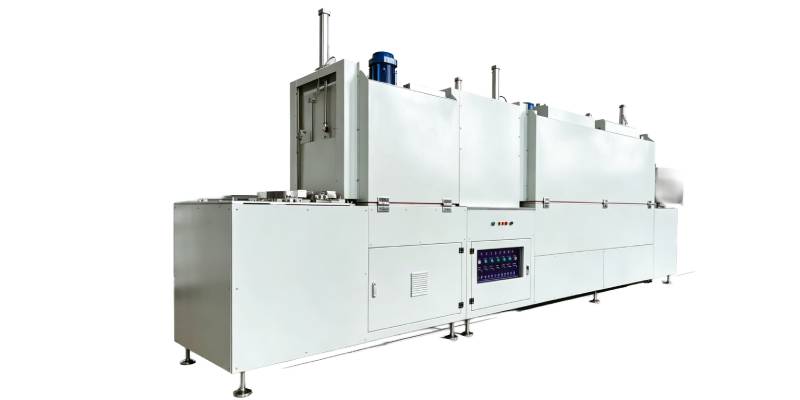

New energy motor stator/rotor tunnel furnaces

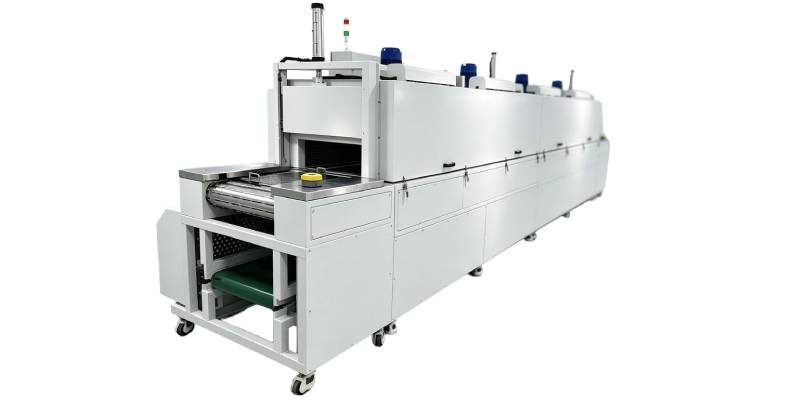

Electronic adhesive curing tunnel furnaces

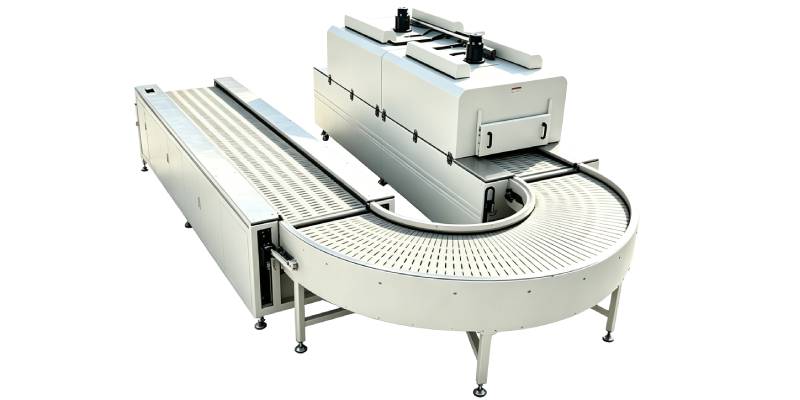

U-shaped tunnel furnace for electronic products

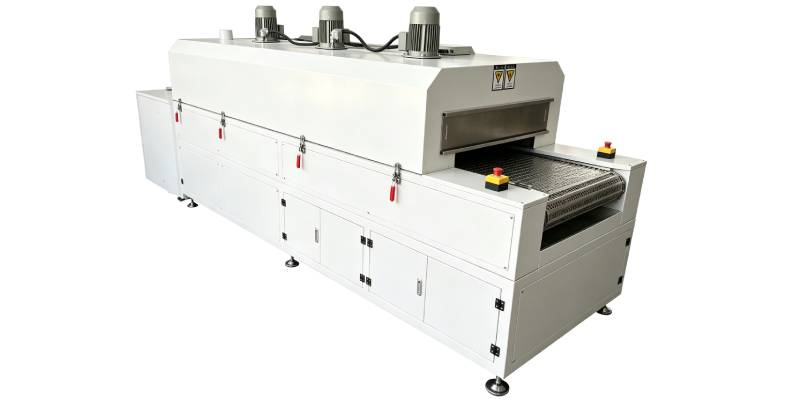

Automotive parts tunnel furnaces

Spraying tunnel ovens

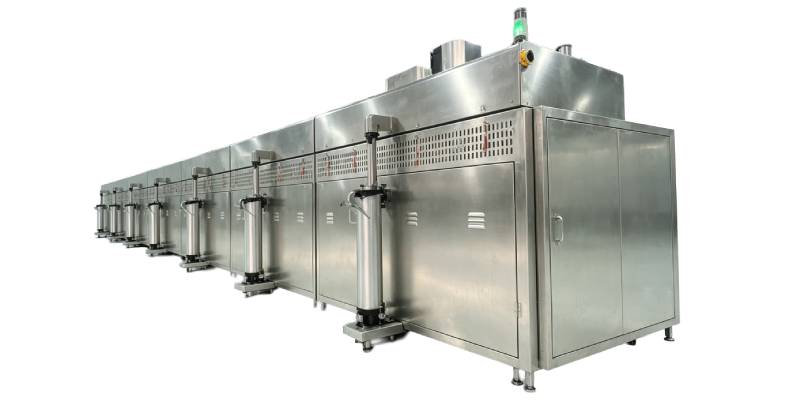

Glass tunnel furnaces

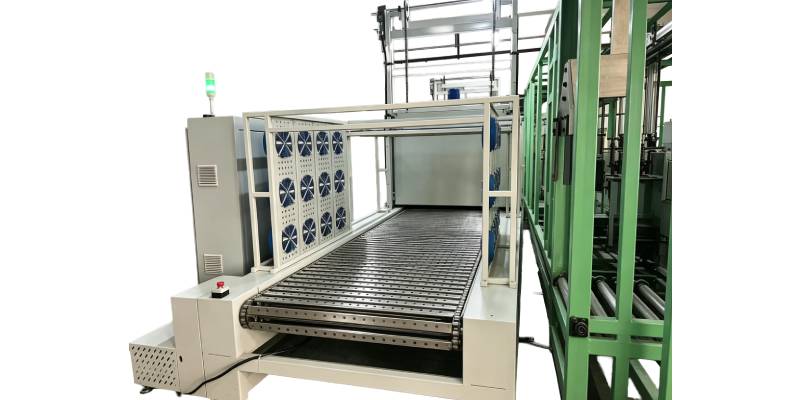

Hardware Fittings tunnel furnaces

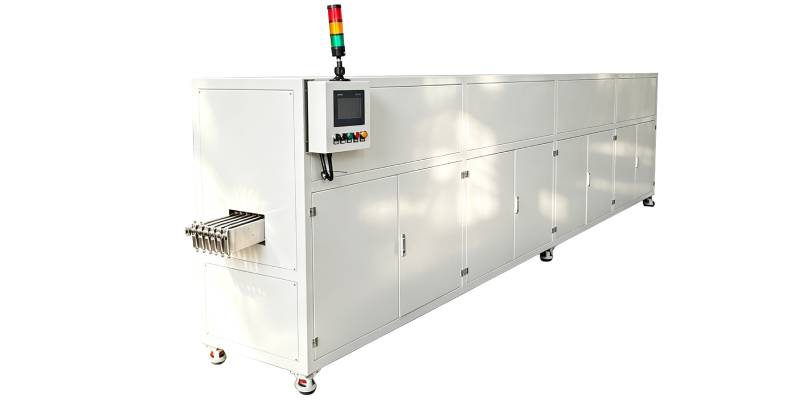

Metal fiber drying furnaces

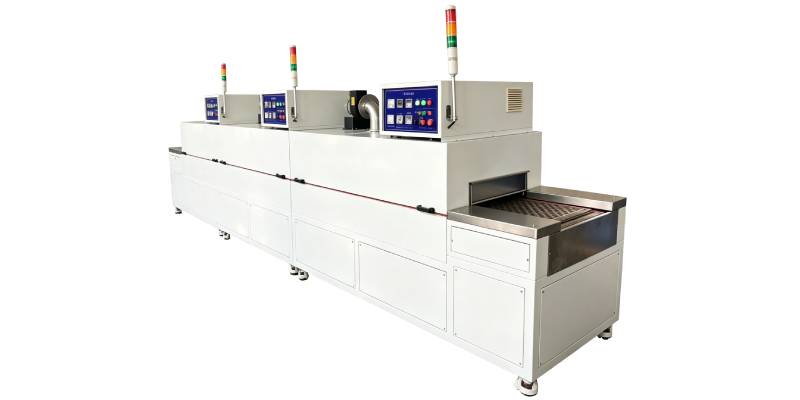

Filter element drying furnaces

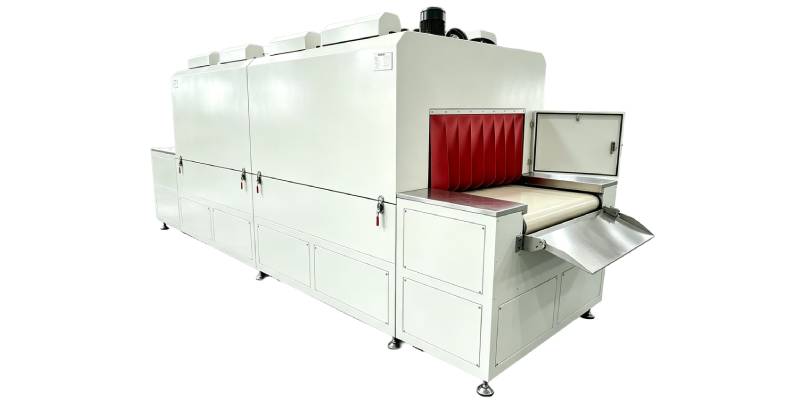

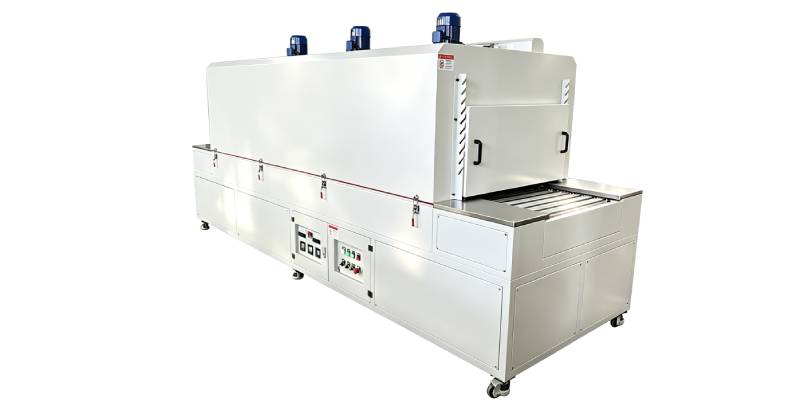

Heat-shrink tubing tunnel furnaces

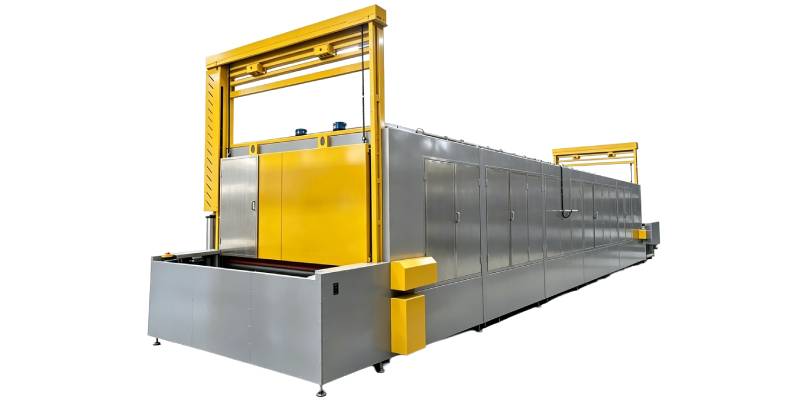

Medical tunnel heating furnaces

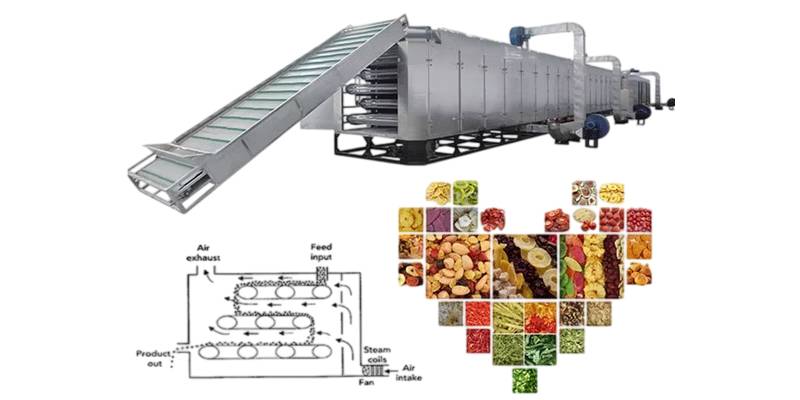

Continuous Mesh Belt Dryer
