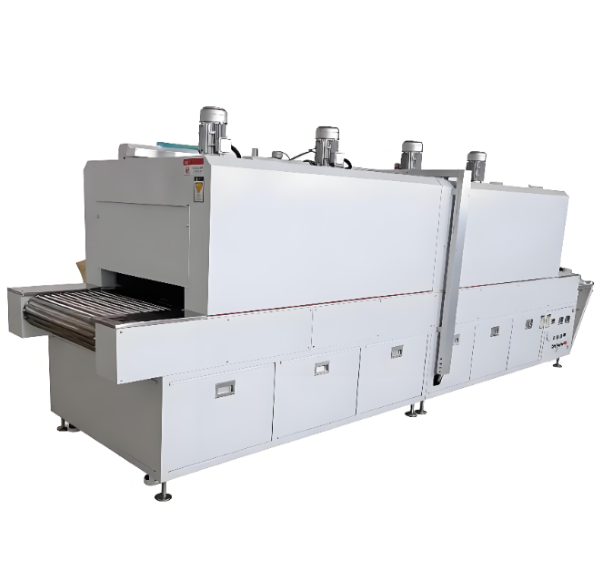

Automotive Pipeline Drying Tunnel Oven

The Automotive Pipeline Drying Tunnel Oven is a continuous industrial oven specially designed for heat treatment, drying, curing, and heat shrink tubing processes of various automotive pipelines, such as brake pipes, fuel pipes, sunroof drain pipes, and coolant pipes. The equipment adopts a continuous conveyor structure combined with precise temperature control technology to achieve efficient and large-scale standardized production of automotive pipeline components.

Product Applications

Heat Shrink Tube Heating:

Used for high-precision shrinking of heat shrink sleeves at automotive wiring harness and pipeline joints.

Coating Curing:

Used for drying and curing anti-corrosion coatings and Teflon coatings on automotive metal pipelines.

Precision Drying of Pipe Components:

Quickly removes moisture from pipelines after cleaning to prevent corrosion on inner walls.

Stress Relief Treatment:

Used for thermal shaping and internal stress elimination of extruded nylon pipes, rubber pipes, and other tubular materials.

Technical Parameter

Product Features

Excellent Heating Uniformity:

The equipment adopts dual-fan air circulation or multi-zone independent circulation duct design to ensure 360-degree uniform heating of pipelines without dead zones.

High Efficiency and Energy Saving:

The high-density aluminum silicate fiber insulation layer combined with intelligent PID temperature control significantly reduces heat loss, external surface temperature, and energy consumption.

Digital Speed Control:

The conveyor speed adopts variable frequency digital adjustment, perfectly matching the production rhythm of upstream and downstream processes.

Comprehensive Safety Protection:

Equipped with multiple safety systems including over-temperature alarm, leakage protection, fan overload protection, and abnormal conveyor operation alarm.

FAQ

Q1: What types of automotive pipelines can this tunnel oven process?

A: It is suitable for nylon pipes, rubber pipes, copper pipes, aluminum pipes, stainless steel pipes, and various composite pipelines with PVC/PE heat shrink sleeves.

Q2: How can long pipelines be prevented from deformation or scratching during transportation inside the oven?

A: According to the pipeline shape, we can customize dedicated supports and fixtures, or select a flat, high-temperature-resistant Teflon conveyor belt to ensure stable transportation without damage.

Q3: Does the equipment support multi-zone independent temperature control?

A: Yes. The tunnel oven can be divided into preheating zone, high-temperature curing zone, cooling zone, and other sections. Each zone can be independently set and controlled.

Q4: Which heating method is better for the tunnel oven?

A: Hot air circulation heating provides more uniform temperature distribution and is suitable for conventional curing processes. Infrared heating offers extremely fast heating speed and is ideal for rapid heat shrink applications.

Q5: Is daily maintenance of the equipment complicated?

A: Maintenance is simple. Regularly clean and lubricate the conveyor chain with high-temperature lubricant, inspect heating tube wiring, and remove dust or debris from air outlets to ensure stable operation.
