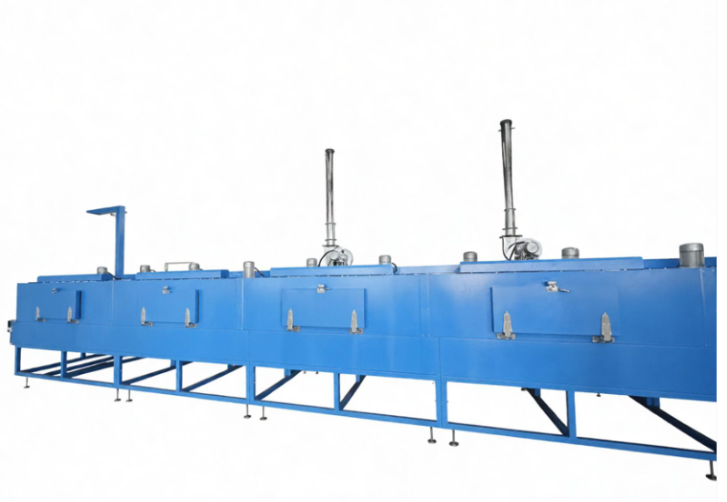

Cosmetic Bottle Drying Oven

The Cosmetic Bottle Drying Oven is a high-efficiency drying equipment specially designed for cosmetic packaging containers, such as glass bottles, plastic bottles, tubes, ointment jars, and other containers after cleaning. The equipment adopts an advanced hot air circulation system and precise temperature control technology to quickly and thoroughly remove residual moisture inside and outside the containers, ensuring that the packaging materials meet clean, dry, and dust-free standards. It fully complies with the strict requirements of cosmetic GMP production regulations.

Product Applications

Efficient Moisture Removal:

Quickly dries various cosmetic packaging containers after cleaning.

High-Temperature Sterilization:

Provides thermal sterilization function to reduce the initial microbial load on containers.

Prevention of Secondary Contamination:

Drying is carried out in a closed and clean environment to prevent secondary contamination caused by airborne dust.

Production Line Integration:

Commonly used as a key connecting process between cosmetic bottle washing lines and filling lines.

Technical Specifications

Product Features

Uniform Heating:

Specially designed hot air circulation duct system ensures minimal temperature difference at different positions inside the oven, providing uniform drying performance.

High Cleanliness:

Built-in high-efficiency HEPA filter ensures that the air entering the drying chamber is clean and free from dust contamination.

Wide Material Compatibility:

Intelligent multi-stage temperature control allows the equipment to handle both high-temperature-resistant glass bottles and low-melting-point plastic bottles.

Energy Efficient:

High-density insulation rock wool layer reduces heat loss, significantly lowering energy consumption during operation.

FAQ

Q1: Is this drying oven suitable for plastic cosmetic bottles?

A: Yes. The equipment supports a wide temperature adjustment range. For plastic bottles such as PET and PP, the temperature can be set at 60℃–80℃ for low-temperature drying to prevent deformation of the bottle body.

Q2: Can the drying cycle or conveyor speed be adjusted?

A: Yes. The equipment adopts a variable frequency speed control system, allowing the conveyor speed to be adjusted according to bottle specifications and production capacity requirements.

Q3: How does the equipment prevent secondary contamination during the drying process?

A: The drying chamber is equipped with a high-efficiency HEPA filter, which strictly filters the incoming air and maintains a clean and dust-free drying environment.

Q4: What is the power consumption of the equipment? Does it have energy-saving features?

A: Power consumption depends on the equipment size and configuration. The machine adopts a thickened double-layer insulation structure combined with a hot air circulation return system, reducing energy consumption by more than 30% compared with traditional ovens.

Q5: How should the equipment be maintained?

A: Maintenance is simple. Regularly clean the interior of the equipment, inspect and replace the HEPA filter every 3–6 months, and periodically lubricate the conveyor chain with high-temperature resistant lubricant.
