Transformer Production Line

The Transformer Production Line is a fully automated manufacturing system specially developed for the automatic assembly, testing, and packaging of current transformers, voltage transformers, and other transformer products.The system integrates multiple processes, including automatic feeding, winding, assembly, withstand voltage testing, error calibration, and finished product marking, enabling full-process automation and complete production data traceability throughout the product lifecycle.

Product Applications

The production line is mainly used for the large-scale and efficient manufacturing of:

High-voltage and low-voltage power transformers

Electronic transformers

Zero-sequence transformers

It is widely applied in:

Power grid equipment manufacturing enterprises

Smart meter manufacturers

Power distribution automation terminal production companies

Structure

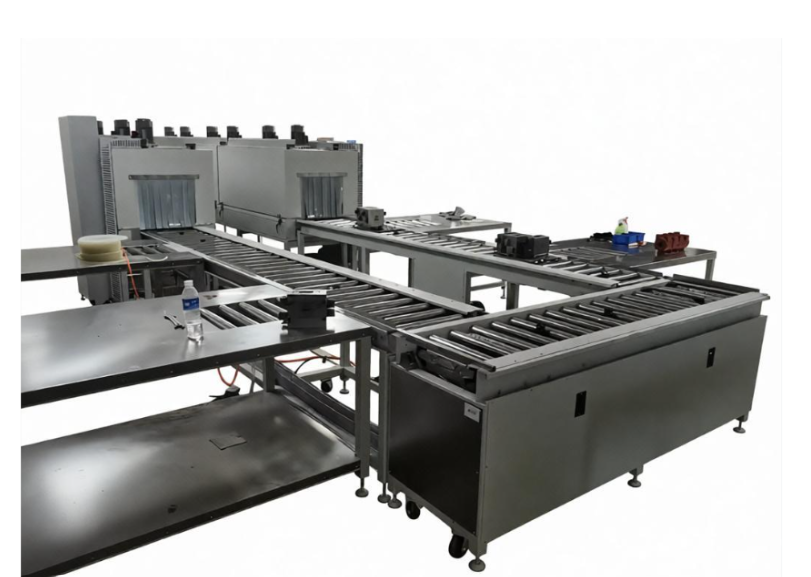

The Transformer Conveyor Oven adopts a structure of left-side preheating and baking section, and right-side curing and return conveying section. It is widely used for material drying and heat treatment applications in industrial fields such as chemical, food processing, electronics, and other manufacturing industries.

The equipment consists mainly of two parts: the conveyor system and the drying oven system. The product is continuously transported through the preheating zone, heating zone, curing zone, and return section to achieve efficient and continuous baking and curing.

Performance Features

The heating elements of the transformer conveyor oven improve thermal efficiency and reduce energy consumption.

The oven is equipped with an electrical control cabinet and digital temperature display control system, allowing the temperature to be maintained at any required constant level.

The insulation layer adopts aluminum silicate fiber as the insulation material, providing excellent heat preservation performance.

As a continuous drying system, the conveyor oven can operate continuously without interruption, significantly improving production efficiency.

Double-side chain transmission effectively prevents product deviation during transportation.

The oven adopts segmented heating zones with independent electrical control cabinets, making operation convenient.

The structure mainly consists of a conveyor system and a drying furnace system.

Multiple independent PID temperature control zones ensure uniform temperature distribution inside the furnace.

Conveyor speed is controlled by frequency conversion, allowing flexible adjustment, stable operation, and high production efficiency.

Main Technical Parameters

FAQ

Q1: Can this production line manufacture different transformer models simultaneously?

A1: Yes. The system adopts a flexible production design. By replacing tooling fixtures and selecting different production recipes, it can quickly switch between different models and specifications of similar transformer products.

Q2: How does the production line ensure the accuracy and safety of test data?

A2: The production line integrates high-precision calibration instruments that comply with national standards. Testing stations are equipped with fully enclosed safety protection covers and electrical interlocking devices to ensure both measurement accuracy and operator safety.

Q3: How can equipment faults be quickly located?

A3: The main control system is equipped with an intelligent diagnostic system, which can display fault locations and causes in real time through the HMI interface. It also supports remote network diagnosis and technical assistance.

Q4: What are the requirements for the factory environment and utility conditions?

A4: The production line requires a standard industrial power supply (AC380V), a stable air supply (≥0.6MPa), and a workshop environment with dust control and relatively stable temperature and humidity conditions.

Q5: How long is the delivery time for the complete production line?

A5: The delivery period depends on the customer's customized requirements, process complexity, and automation level. The standard delivery time is generally 3 to 5 months.
