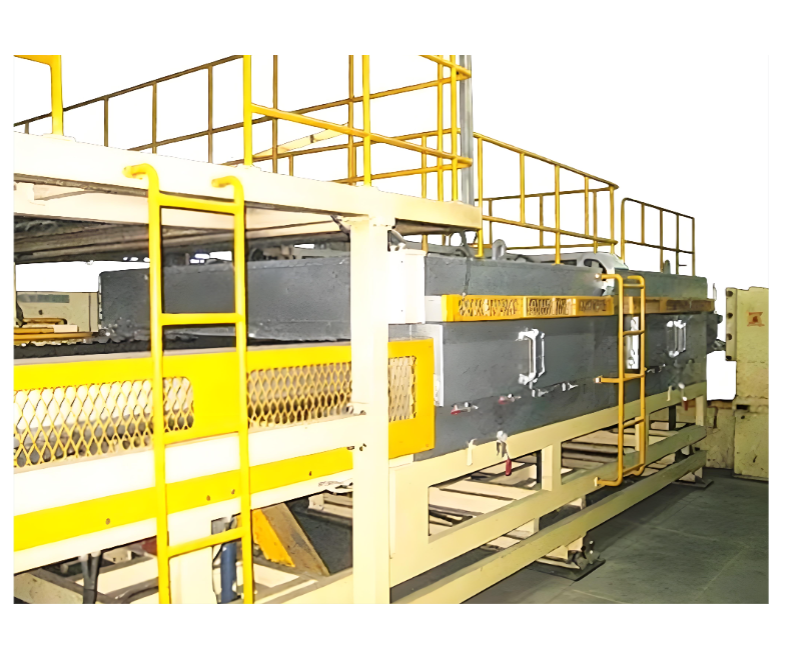

Automotive Interior Parts Blank Heating Furnace

The Automotive Interior Parts Blank Heating Furnace is an industrial-grade specialized heating system designed for the rapid and uniform heating of blanks used in automotive interior components, such as headliners, carpets, door panels, sun visors, and other interior parts before compression molding.The materials to be heated typically include PU composite boards, PP/PET fiber boards, needle-punched cotton, and other composite blanks. The furnace generally adopts infrared radiation heating or hot air circulation heating technology and serves as a key upstream process equipment in automotive interior thermoforming production lines.

Product Applications

Material Preheating:

Heats rigid or flexible automotive interior composite blanks to their softening temperature, improving their plasticity and forming performance.

Adhesive Activation:

Rapidly heats curing adhesives or hot-melt adhesive films inside composite materials to ensure strong bonding between layers during the molding process.

Molding Preparation:

Provides uniformly heated blanks that meet process requirements for subsequent hydraulic presses or pneumatic molding machines.

Product Parameters

Product Features

Rapid and Uniform Heating:

Adopts multi-zone independent matrix temperature control technology to ensure consistent surface and core temperatures throughout the entire blank, preventing local overheating or insufficient heating.

Energy Efficient Performance:

Uses high-density insulation materials and infrared electric heating elements to achieve high thermal efficiency, reducing energy consumption by more than 20% compared with traditional ovens.

Intelligent Production Line Integration:

Equipped with standard PLC interfaces, enabling fully automatic integration with front-end loading systems and rear-end compression molding machines.

Comprehensive Safety Protection:

Features multiple safety mechanisms including over-temperature alarms, smoke detection, and pneumatic emergency furnace opening systems to prevent material burning in case of unexpected power failure.

FAQ

Q1: What types of automotive interior materials are suitable for this heating furnace?

A:The furnace is suitable for most thermoforming automotive interior blanks, including PP+EPDM, PET fiber boards, polyurethane (PU) composite boards, needle-punched cotton, and glass fiber reinforced composite materials.

Q2: How does the furnace ensure uniform temperature heating for large-area blanks?

A:The equipment adopts matrix-type micro-zone temperature control technology. The heating surface is divided into dozens of independently controlled zones, with PLC-based precise PID adjustment to ensure that the overall temperature difference remains within ±3℃.

Q3: If the production line suddenly loses power, will the blanks inside the furnace catch fire?

A:No. The equipment is equipped with a pneumatic/mechanical emergency furnace opening system or rapid material discharge device. In the event of a power failure, the energy storage cylinder automatically moves the heating plates away or pushes the materials out of the heating area, preventing prolonged heating and potential burning.

Q4: Does the equipment need to be readjusted when changing blanks with different thicknesses and materials?

A:Yes, adjustments are required. However, the control system supports process recipe storage. Operators can simply select the preset parameters for the corresponding material (temperature, conveyor speed, heating gap, etc.) on the touchscreen, and the equipment will automatically adjust to the required settings.

Q5: How fast is the heating process? Will it affect the production cycle of the entire line?

A:With efficient infrared radiation heating, the typical heating cycle for blanks is approximately 30 to 90 seconds. The heating speed can fully match and meet the rapid production cycles of modern automotive interior molding production lines.
