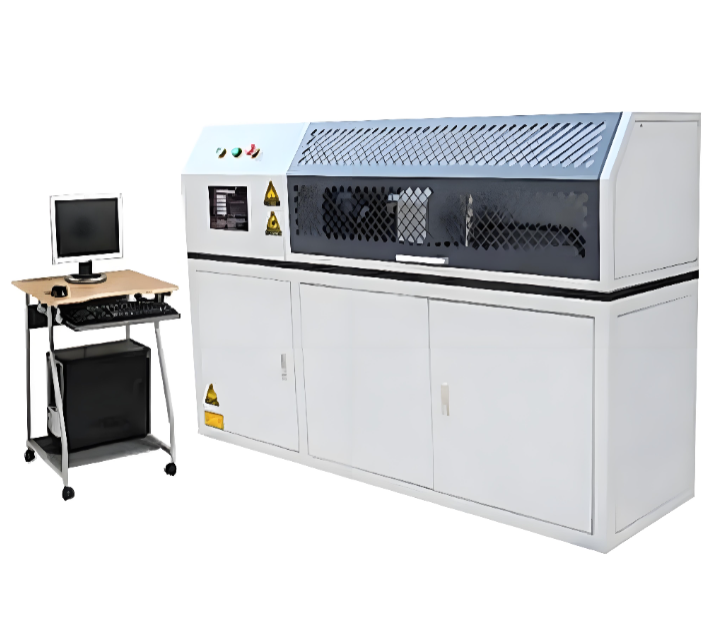

500 N·m Screwdriver Torsional Strength Testing Machine

The 500 N·m Screwdriver Torsional Strength Testing Machine is a high-precision torsion testing system designed to evaluate the torsional strength and mechanical properties of screwdrivers and other torque-loaded materials or components. With a maximum test torque of 500 N·m, the machine uses a high-resolution torque measurement system and angle measurement system to accurately record torque and torsion angle during testing.

Application

The 500 N·m Screwdriver Torsional Strength Testing Machine is widely used for torsional performance testing of various materials and components, including:

Welding joints

Spring steel

Steel wire ropes

Steel wires

Electrical wires

Cables

Other metal materials and torque-loaded specimens

The machine can determine key mechanical performance parameters such as:

Maximum Torque

Torsional Strength

Upper Yield Strength

Lower Yield Strength

Torsional Failure Torque

The test data can be automatically collected, analyzed, and printed as detailed test reports, making the equipment suitable for material research, quality inspection, product development, and laboratory testing.

Technical Specifications

Applicable Standards

GB/T 10635 — General Technical Conditions for Screwdrivers

GB/T 10639 — Slotted Screwdrivers

GB/T 10640 — Cross-Recessed Screwdrivers

GB/T 3229 — Assembly Tools for Screws and Nuts — Dimensions and Torque Test for Drive Ends and Connecting Parts

GB/T 10128 — Metallic Materials — Torsion Test Method at Room Temperature

GB/T 2611 — General Technical Requirements for Testing Machines

JJG 269 — Verification Regulation for Torsion Testing Machines

Main Features

High Torque Capacity: Maximum test torque reaches 500 N·m, with higher capacities available on request.

High Accuracy: Testing machine accuracy reaches Class 0.5.

High-Resolution Torque Measurement: Torque resolution is up to 1/300.000 of the maximum torque.

Wide Measurement Range: Torque measurement range of 5–500 N·m, covering a broad range of screwdriver torsional tests.

Precise Angle Measurement: Minimum torsion angle reading is 0.01°, with indication error within ±0.5%.

Wide Speed Range: Test speed can be continuously adjusted from 0.05–720°/min.

Flexible Specimen Clamping: Clamping fixtures can be customized according to different screwdriver sizes and shapes.

Adjustable Test Space: Distance between the loading disc and torque disc can be adjusted from 0–650 mm.

Computer-Controlled Testing: Supports automatic data acquisition, torque-angle curve display, data analysis, storage, and test report generation.

Stable and Reliable Structure: Designed for laboratory and industrial quality-control applications with stable torque loading.

Customizable Configuration: Fixtures, test space, torque range, and other configurations can be customized according to specific testing requirements.
