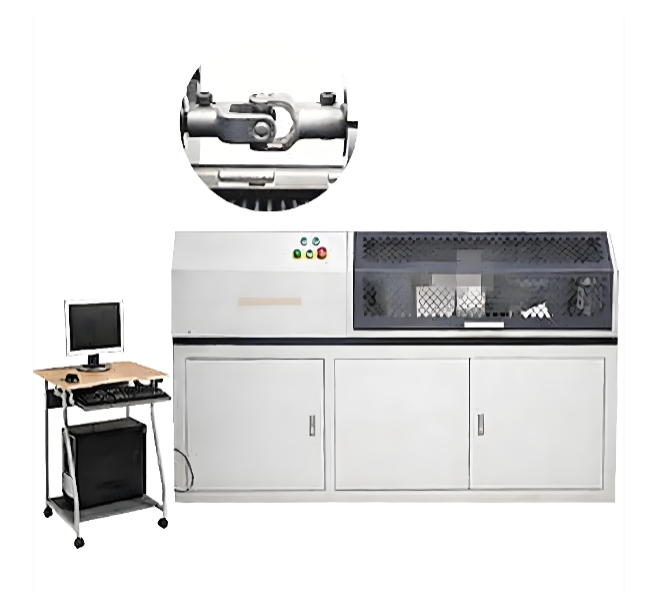

Universal Joint Torque Testing Machine

The Universal Joint Torque Testing Machine is widely used for evaluating the torsional mechanical performance of universal joints, universal joint adapters, and other torque-transmitting tools. It is suitable for hardware tool manufacturers, quality supervision authorities, metrology and testing institutes, metallurgy, aerospace, automotive, and other industries.

Main Functions

Torque Testing: Measures the torque applied to the universal joint during testing.

Peak Torque Measurement: Records the maximum torque reached during the test.

Torsion Angle Measurement: Measures the torsion angle of the specimen.

Curve Analysis: Displays and analyzes:

Torque–Time Curve

Torque–Torsion Angle Curve

Torque–Rotation Angle Curve

Adjustable Fixtures: The fixture spacing can be adjusted to accommodate different specimen sizes.

Computer-Controlled Operation: Provides automated control and real-time test data acquisition.

Data Management: Supports test data storage, retrieval, and test report printing.

Multiple Test Modes: Can be used for torsional performance, peak torque, and destructive testing according to the specified test requirements.

Recommended Test Environment

Ambient Temperature: 10–35°C

Relative Humidity: ≤80%

Installation: Stable foundation or workbench

Environment: Free from significant vibration and corrosive media

Power Supply: Voltage fluctuation within ±10% of the rated voltage

The equipment is suitable for product development, quality control, incoming inspection, finished-product testing, and torsional performance evaluation of universal joints and related fastening tools.

Technical Specifications

Applicable Standards

ISO 1174-1 — Assembly Tools for Screws and Nuts — Drive Ends for Hand-Operated Square Drive Sockets

ISO 1174-2 — Assembly Tools for Screws and Nuts — Drive Ends for Power-Driven Square Drive Sockets

ISO 1711-1 — Assembly Tools for Screws and Nuts — Mechanical Properties of Hand Tools — Part 1: Wrenches for Industrial Use

ISO 1711-2 — Assembly Tools for Screws and Nuts — Mechanical Properties of Hand Tools — Part 2: Wrenches for Automotive Use

GB/T 3390 — Hand-Operated Socket Wrenches

GB/T 2611 — General Technical Requirements for Testing Machines

GB/T 10128 — Metallic Materials — Torsion Test Method at Room Temperature

JJG 269 — Verification Regulation for Torsion Testing Machines

Main Features

Wide Torque Range: Maximum test torque available from 100 to 5000 N·m, with customizable configurations.

High-Precision Torque Measurement: Measurement range covers 1%–100% FS, with a minimum torque resolution of 0.01 N·m / 0.1 N·m.

High-Resolution Angle Measurement: Angle resolution up to 0.01°, with a maximum torsion angle of 99.999°.

Adjustable Test Speed: Test speed ranges from 0.1–720°/min, with customizable speed ranges.

Bidirectional Loading: Supports both forward and reverse torsional loading.

Accurate Measurement: Torque and angle indication errors are less than ±0.5%, with repeatability errors below 0.5%.

Computer-Controlled Testing: Supports automatic test control, real-time data acquisition, curve analysis, data storage, and report generation.

Adjustable Fixtures: Interchangeable fixtures can accommodate different universal joint and related tool specifications.

Multiple Test Functions: Supports torque testing, peak torque measurement, torsion angle measurement, constant-torque testing, and destructive testing.

Stable Loading: Provides smooth and controlled torque loading for reliable and repeatable test results.
