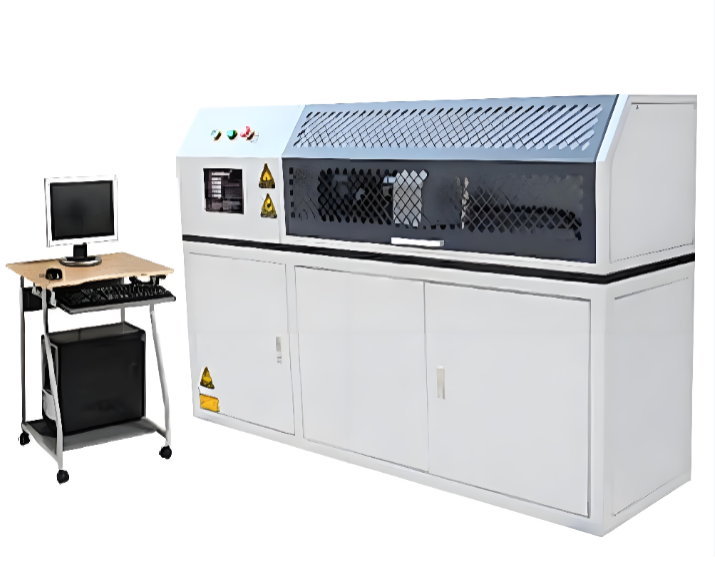

The Tool Torque Testing Machine is mainly designed for torque testing of tools by tool manufacturers
WhatsApp : +86 15601902607
Email : info@qinsun-lab.com
The Tool Torque Testing Machine is mainly designed for torque testing of tools by tool manufacturers, testing laboratories, and research institutions. With appropriate fixtures, it can perform mechanical performance testing on a wide range of tools, finished products, semi-finished products, and workpieces.
The machine can be equipped with different fixtures for testing:
Wrenches
Ratchet wrenches
Pipe wrenches
Sockets
Screwdrivers
Other hand tools
Finished and semi-finished tool products
Metal raw materials and workpieces
The computer-controlled system can automatically complete cyclic testing of various tools and metal materials. Individual parameters can also be tested separately according to specific requirements.
GB/T 230.1 — Metallic Materials — Rockwell Hardness Test
GB/T 3390 — Hand-Operated Socket Wrenches
GB/T 10635 — General Technical Requirements for Screwdrivers
GB/T 10639 — Slotted Screwdrivers
GB/T 10640 — Cross-Recess Screwdrivers
QB/T 4619-2013 — Ratchet Wrenches
GB/T 2611 — General Technical Requirements for Testing Machines
GB/T 10128 — Metallic Materials — Torsion Test Method at Room Temperature
JJG 269 — Verification Regulation for Torsion Testing Machines
ISO 1711 — Assembly Tools for Screws and Nuts — Mechanical Properties of Hand Tools
ISO 6789 — Assembly Tools for Screws and Nuts — Hand Torque Tools
| Item | Specification |
|---|---|
| Maximum Test Torque | 10 / 20 / 50 / 100 / 200 / 300 / 500 / 1000–5000 N·m |
| Test Stroke | 300 mm / 500 mm |
| Accurate Measurement Range | 1% FS–100% FS |
| Angle Resolution | 0.01° |
| Torsion Angle Range | ±9.999.999° |
| Torque Resolution | 1/300.000 (constant resolution throughout the full range) |
| Testing Machine Accuracy Class | Class 1.0 / Class 0.5 |
| Relative Error of Angle Indication | <±0.5% |
| Repeatability Error of Angle Indication | <0.5% |
| Relative Error of Torque Indication | <±0.5% |
| Repeatability Error of Torque Indication | <0.5% |
| Torsion Fixture | Equipped with universal fixture set |
Multi-purpose Tool Testing: Suitable for various tools with interchangeable fixtures.
Computer-Controlled Operation: The test process can be automatically controlled by a computer.
Programmable Test Procedures: Test programs can be adjusted according to actual testing requirements.
Automatic Data Processing: Test data can be automatically collected, processed, and analyzed.
Cyclic Testing: Supports complete automatic test cycles for applicable tools and materials.
Individual Parameter Testing: Specific performance parameters can be measured independently.
Test Report Generation: Test reports can be generated and printed automatically.
Multiple Data Output Formats: Test results can be presented as curves, Excel files, text files, and other formats.
