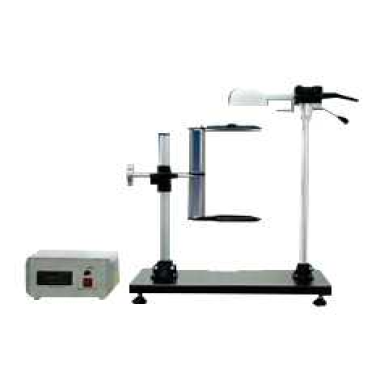

Thermal Radiation Melt Drop Tester

Standards:

NF P 92-505. EU 95/28/EC，ECE R118

Application:

Thermal Radiation Droplet Tester, to determine the resistance to the thermal radiation through up a radiant heat source placed on the top of the sample to generate gas combustion, droplet, fiber combustion, etc. thus the fire safety of automotive interior materials is determined.

Feature:

Automotive interior materials droplet characteristic tester is according to appendix 7 of ECE R118 to determine the melting characteristics of materials. With mechanical and electrical equipment control box body, cold plate with American equipment - Orange shaped paint surface treatment, body inside and outside resistance to acid and alkali resistance, long service life.

Parameter:

1.Sample holder: inner diameter of 118 mm stainless steel ring, inside diameter of 0.70 mm and a mesh diameter is 2.10mm into the stainless steel mesh .Sample installation height can be adjusted

2.Sample size: 70 x 70 (mm), the thickness is not more than 13mm

3.Residue container: inner diameter 118mm, depth 12mm

4.Radiant heat source power: 500W

5.Heat radiation: diameter 100mm± 5mm transparent glass plate

6.Radiator heat radiation 30KW/m2. up to 100KW/m2 Max;

7.Radiator heat radiation linear adjustable; radiant heat is adjusted automatically by power control
