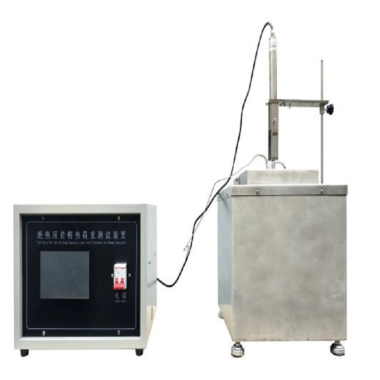

Thermal load testing equipment of rock wool for heat insulation

Technical parameters:

1. Seven-inch full-color touch screen control, multi-point program heating,

2. Ambient temperature: room temperature ——40℃ Relative humidity :≤75%

3. Working voltage: AC 220V±10V 50HZ

4.Total power :2.5KW Heating power :1000W

5. Scale measuring range: room temperature ——900°C

6. Heating rate: Room temperature ——400℃，5°C/min, 400——800℃， 3℃℃/min

7. The instrument adopts single-chip computer and multi-point program heating

8. Fixture: stainless steel material; anti-corrosion

9. The heat source of the instrument is hot plate

10. Sample :490pa pressure

11. Test barrel :48mm±1mm

12. Equipment weight :50 Kg
