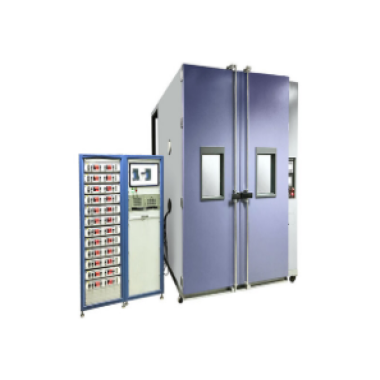

Thermal cycle wet freezing testing machine

Objective:

The wet freezing heat cycle testing machine of photovoltaic modules is to place the components in an environment with repeated temperature changes of -40 ° C ——85 ° C to determine the performance of the components in the repeated temperature change environment.

Applicable standards :

IEC61215, UL1073

Technical parameters:

1, temperature range :-40——85°C

2, temperature fluctuation :≤±1℃

3, temperature deviation :≤±1℃℃

4, temperature uniformity :≤+2°

5, rising and cooling rate: meet the requirements of IEC 61215 standard

6, humidity range :30——98%RH.

7, relative humidity deviation :±3%FS; Deviation 85+2%RH; 90+2%RH
