Brand:QINSUN
Model:G-DM150

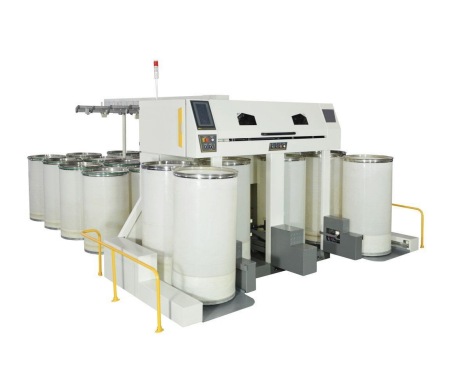

The DRAWING MACHINE (2nd) is a key piece of equipment in the spinning process used to further improve the quality of the fiber sliver. It is located after the 1st Drawing Machine and mainly performs secondary merging and fine drafting of the fiber sliver to make the yarn more uniform and stable.
Item | Specification |
Heads per frame | 3/5 |
Silvers per head | 8 |
Deliveries per head | 2 |
Pitch of Silver | 4.5” |
Length of reach | 12” |
Diameter of front roller | 2.1/4” |
Diameter of back roller | 2 |
Diameter of pressing roller | MacDraw |
Width of silver trap | 11/4” |
Width of silver at feed | 21/4” |
Width of gills | Through |
Doubling on Frame | 4:1 |
Draft / Range | 5.5-6.5 |
Description of rubber at front & back | Revolving |
Production in kg/hr | 300 (Approx.) |
One year warranty
