Brand:QINSUN
Model:G-BL207

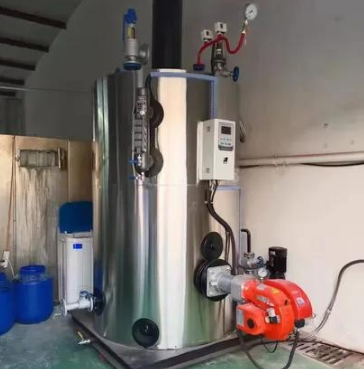

Boiler is an industrial heating system designed to generate steam or hot water for various production processes. It provides efficient thermal energy by converting fuel into heat, ensuring stable and continuous operation. Widely used in textile, chemical, and manufacturing industries, it offers reliable performance, high efficiency, and safe operation.
l Packaged vertical water tube 2/3 pass Boiler
l Fully automatic control, Boiler grade steel and tube
l Complete package burner for on/off operation
Boiler Capacity | 0.5 ton, or Electrical 48 kg/hr (F&A 100°C) | |
Type | Water Tube, Vertical, Top Fired, 2-pass | |
Power Supply | 230V / 1Ph / 50Hz / AC; Electric 415V 3P / 220V / 50Hz / AC | |
Heating Surface | 1.43 m² | |
Water Volume (at NWL) | Approx. 17 liters | |
Volumetric Capacity | Approx. 22 liters | |
Blow Down Outlet | 25 mm dia | |
Main Steam Outlet | 20 mm dia | |
Feed Water Inlet | 15 mm dia | |
Chimney Outlet | 100 mm dia | |
Power Consumption | Burner motor: 0.37 kW (220V, 1Ph, 50Hz AC) | |
Feed Water Pump | 0.75 kW (220V, 1Ph, 50Hz AC) |
With insulation pipe and steam connection with dyeing machine.
All dyeing machine need high temp will be connected with boiler steam line with individual control.
Over pressure, low water level, no air flow to burner and power failure.
Suitable for working at high pressure. Thermal efficiency 89% and fuel to steam efficiency 85% based on net calorific value of the fuel.
One year warranty
