Brand:QINSUN
Model:G-BC102

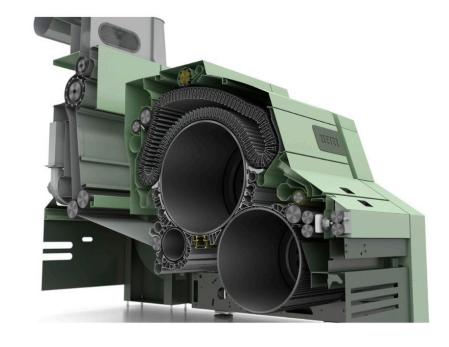

The BREAKER CARD is a key piece of equipment in the pre-spinning process of textiles. It is mainly used to further open, comb, and remove impurities from the raw materials after opening and blending, forming coarser fiber strips or fiber layers to prepare for subsequent combing or fine combing processes.
Item | Specification |
1. Type: | 2/3 Pair Half Circular Down Striker |
2. Uptake: | Positively driven Detachable |
3. Feed: | By Spreader Rolls / By Hand |
4. Taker-in: | Shell Feed with wear resistant Node nip |
5. Delivery: | Roll Former |
6. Working Width: | 70 inches |
7. Sliver Width: | 5 inches |
8. Delivery Rate: | 240 - 300 ft./min. |
9. Clock Length: | 11.5 yds. |
10. Draft Range: | 11.3 - 21.7 (Hand feed) / 11.9-22.88 (Uptake Feed) |
11. Main Motor: | 12 Kw (15HP) |
12. Card Clothing: | Wooden Staves / Metalag |
13. Cylinder Speed: | 225 rpm |
14. Worker & Stripper: | 2/3 Pairs |
15. Worker / Stripper Drive: | Chain & Sprocket (MJB 01) / Gear - Pulley & Belt (MJB 02) |
16. Cylinder Diameter: | 48 inches |
17. Doffer Diameter: | 21.34 inches |
18. Feeder Diameter: | 10.6 inches |
19. Worker Diameter: | 10.6 inches |
20. Stripper Diameter: | 10.6 inches |
21. Drawing Roller Diameter: | 4 inches |
22. Delivery Roller Diameter: | 5 inches |
23. Conveyor Rollers Bare Diameter: | 4.5 inches |
One year warranty
