Thermostat testing device

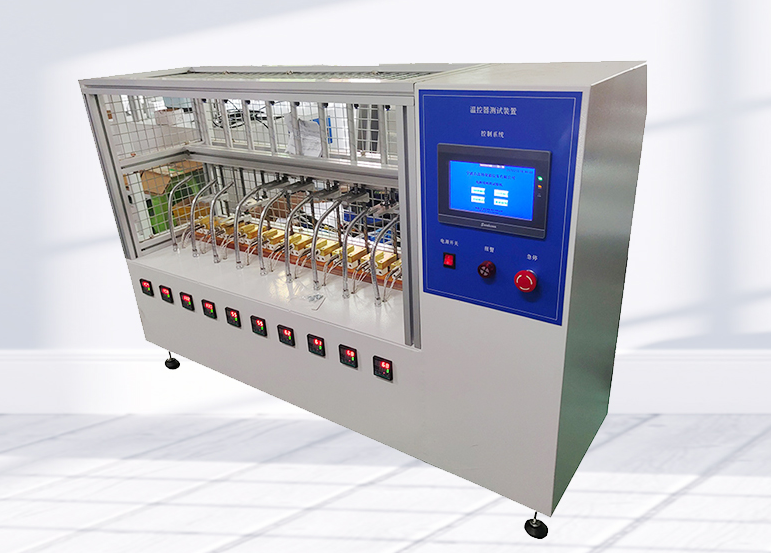

The Thermostat Testing Device is a dedicated system for life cycle testing of snap-action thermostats. You use this equipment to alternately expose the thermostat sensing surface to controlled hot and cold air streams, creating precise thermal cycling conditions. Through repeated heating and cooling, the device reliably triggers thermostat on and off actions, allowing you to evaluate switching performance, durability, and electrical continuity over extended test cycles. PLC and touchscreen control provide accurate parameter setting, real-time monitoring, and clear fault indication.

Applications

• Snap-action thermostats

• Bimetal thermostats

• Temperature limiters and thermal protectors

• Thermostats used in household appliances, heating equipment, and electrical devices

Standards

(1) IEC 60730 Automatic electrical controls for household and similar use

(2) IEC 60730-1 General requirements for automatic controls

(3) IEC 60335-1 Household and similar electrical appliances – General requirements

(4) UL 60730 Automatic electrical controls for household use

(5) GB/T standards related to thermostat life and performance testing

Features

• Alternating hot and cold air exposure enables accurate thermal cycling

• Triggers thermostat on and off actions under controlled temperature conditions

• PLC and touchscreen control allow flexible parameter configuration

• Ten independent load channels support multi-sample testing

• Real-time current detection monitors electrical continuity

• Automatic shutdown and fault display enhance test safety and efficiency

Technical Parameters

Accessoriess

(1) Air heating module

(2) Air cooling module

(3) Thermostat mounting fixtures

(4) Connection terminals for load channels

(5) Operation manual

Test Procedures

1.Mount the thermostat samples onto the fixtures and connect them to the load terminals.

2.Power on the device and access the control interface on the touchscreen.

3.Set test parameters such as heating time, cooling time, and cycle count.

4.Start the test to alternate hot and cold air exposure on the sensing surface.

5.The system monitors on/off cycles and electrical continuity in real time.

6.If a fault occurs, the device automatically stops and displays the failure type on the HMI.

FAQ

1. What types of thermostats can you test with this device?

You can test snap-action thermostats and similar temperature control components that operate through thermal switching.

2. How does the device trigger thermostat switching?

It alternates controlled hot and cold air streams on the sensing surface, creating thermal cycles that trigger on and off actions.

3. How many samples can be tested at the same time?

The device supports up to ten samples simultaneously through independent load channels.

4. How does the system detect thermostat failure?

Each channel includes current detection. When conductivity is lost or abnormal, the system identifies open or short circuits and stops the test.

5. Is fault information displayed clearly during testing?

Yes. The HMI displays the fault type and affected channel when a failure occurs.

6. Can you adjust test parameters easily?

Yes. All test parameters are configured directly through the PLC-controlled touchscreen interface.
