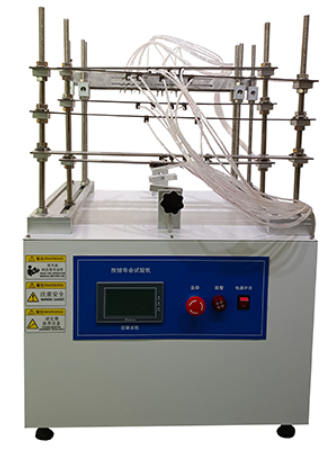

Rice Cooker Button Life Test Machine

The Rice Cooker Button Life Test Machine is a pneumatic and motor-driven durability testing system designed to evaluate the service life of control buttons and lid opening/closing mechanisms in rice cookers and similar household appliances. You use this equipment to simulate repeated user operations under controlled conditions, helping you verify long-term mechanical reliability. With PLC control and a touchscreen interface, the system ensures stable performance, intuitive operation, and consistent lifecycle test results for cooking appliances.

Applications

This machine is suitable for durability and lifecycle testing of user-operated mechanical components in household appliances, including but not limited to:

• Rice cooker control buttons

• Rice cooker lid open/close mechanisms

• Multi-function cooker buttons

• Electric pressure cooker buttons

• Small kitchen appliance mechanical switches

It is widely used in appliance R&D laboratories, quality inspection departments, and reliability testing centers.

Standards

(1) IEC 60335-1 Household and similar electrical appliances – General requirements

(2) IEC 60335-2 Series for specific household appliance safety

(3) ISO 16750 Mechanical load and durability testing concepts

(4) GB/T 4706.1 Safety of household and similar electrical appliances

Features

• Pneumatic and motor-driven structure ensures stable and repeatable test actions

• PLC and touchscreen control allow easy parameter setting and monitoring

• Simulates real user operations for accurate lifecycle evaluation

• Supports long-duration continuous testing with reliable performance

• Flexible fixture design adapts to different appliance models

Technical Parameters

Accessoriess

(1) Standard test fixture
(2) Pneumatic components
(3) Touchscreen control panel
(4) PLC control unit
(5) Operation manual

Test Procedures

1. Secure the test sample on the fixture and ensure proper alignment.

2. Set test parameters such as cycle count, speed, and action sequence on the touchscreen.

3. Adjust pneumatic pressure to match the required operating force.

4. Start the test and allow the system to perform repeated button or lid operations.

5. Monitor the test process and record any functional changes or failures.

6. Stop the test automatically or manually after reaching the preset cycle count.

FAQ

1. What types of appliances can you test with this machine?

You can test rice cookers and other household appliances that use mechanical buttons or lid opening and closing mechanisms.

2. Can you adjust the test force and speed?

Yes. The pneumatic system and control interface allow you to adjust both force and operating speed according to test requirements.

3. Is the test cycle programmable?

Yes. You can freely set the number of test cycles through the PLC touchscreen interface.

4. Does the machine support long-term continuous testing?

Yes. It is designed for stable, long-duration operation to support lifecycle and durability tests.

5. Can the fixtures be customized for different products?

Yes. Fixtures can be designed or adjusted to accommodate different appliance models and structures.
