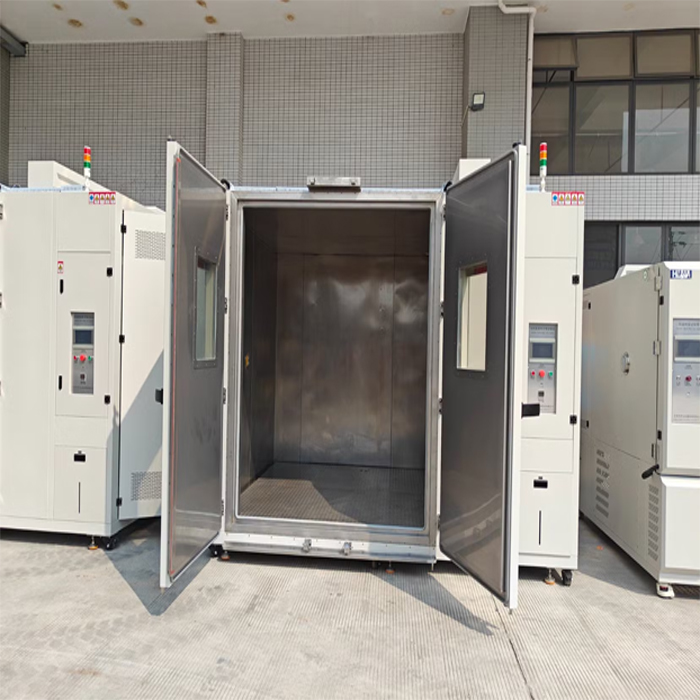

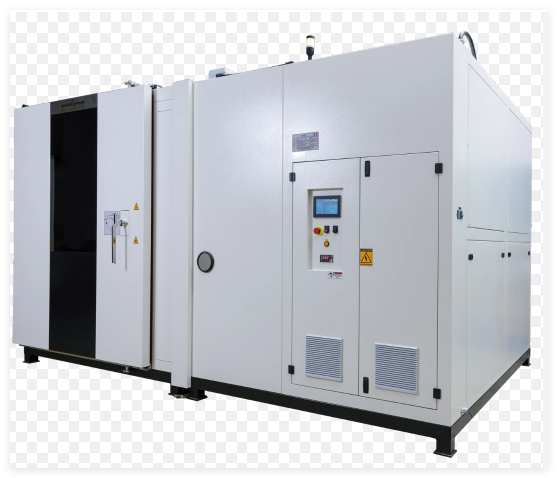

The Walk-in High/Low Temperature and Low Pressure Test Chamber is a precision environmental simulation instrument designed to replicate high-temperature, low-temperature, and low-pressure composite conditions. You can use it to perform single-parameter or multi-parameter coupled environmental tests on large-scale equipment, ensuring reliability and performance verification under extreme conditions.
Avionics equipment testing, spacecraft vacuum thermal testing, new energy sectors (high-altitude lithium battery and photovoltaic inverter testing), and electronic equipment stability verification (5G base stations, communication equipment, etc.).
GB/T 10590-2006 Technical Specifications for High/Low Temperature and Low Pressure Test Chambers
GB/T 2423.25 Environmental Testing for Electrical and Electronic Products. Part 2: Test Methods. Test Z/AM: Combined Low Temperature/Low Pressure Test
GB/T 2423.26 Environmental Testing of Electrical and Electronic Products. Part 2: Test Methods. Test Z/BM: Combined High Temperature/Low Pressure Test
GJB 150.2A Laboratory Environmental Test Methods for Military Equipment. Part 2: Low Pressure (Altitude) Test
GJB 367.2 General Technical Conditions for Military Communication Equipment. Environmental Test Methods
1.Walk-in design accommodates large equipment and multiple test samples simultaneously.
2.Capable of simulating extreme high/low temperatures and low-pressure environments with precise control.
3.Pressure and temperature control systems ensure uniformity and minimal fluctuation for reliable results.
4.Adjustable pressure change rates allow simulation of realistic ascent/descent conditions.
5.Stainless steel chamber construction with sandblasted surface ensures durability and easy maintenance.
6.Multi-parameter coupling allows high fidelity simulation of complex environmental conditions.
| Item | Specifications |
|---|---|
| Nominal Internal Volume | 12.1 m³ |
| Chamber Internal Dimensions | 2500 mm (L) × 2300 mm (W) × 2100 mm (H) |
| Chamber Structure | Integral construction required for the equipment chamber |
| Chamber Material | Inner liner made of stainless steel with sandblasted surface treatment |
| Temperature Range | -45°C ~ +130°C (maintainable under both normal pressure and vacuum conditions) |
| Temperature Fluctuation | ≤±0.5°C (under normal pressure) |
| Temperature Uniformity | ≤2°C (under normal pressure) |
| Temperature Deviation | ≤±2°C (under normal pressure) |
| Pressure Range | 101.3 kPa ~ 20 kPa |
| Pressure Change Rate | ≤10 kPa/min (adjustable); from normal pressure to 1 kPa ≤30 min |
| Pressure Recovery Rate | ≤10 kPa/min (adjustable and controllable) |
| Pressure Deviation | ±2 kPa (normal pressure ~ 40 kPa)±5% (40 kPa ~ 4 kPa)±0.1 kPa (4 kPa ~ 1 kPa) |
| Pressure Reduction Time | From normal pressure to 20 kPa ≤30 min |
| Simulated Altitude | ≥10.000 meters |
1.Digital temperature and pressure control system
2.Vacuum pump and pressure regulation system
3.Data acquisition and monitoring software
4.Safety interlocks and alarm system
5.Adjustable shelving and mounting fixtures for test samples
1.1. Equipment Preparation
Verify chamber integrity, power supply, and control system calibration.
Confirm vacuum pump and pressure regulation system functionality.
Prepare test samples and arrange securely inside the chamber.
2. 2.Parameter Setting
Set desired temperature and pressure profiles according to test requirements.
Adjust pressure change rate to simulate ascent or descent conditions.
Enable data logging and monitoring functions.
3. 3.Test Execution
Start the chamber and allow environmental parameters to reach target values.
Monitor temperature and pressure uniformity throughout the test duration.
Record any deviations or alarms for analysis.
4. 4.Test Completion
Gradually return chamber to standard temperature and pressure conditions.
Safely remove test samples and review data for evaluation.
1. What types of equipment can be tested in this chamber?
You can test aerospace electronics, communication devices, new energy components, and other large-scale equipment requiring high/low temperature and low-pressure conditions.
2. How precise is the temperature and pressure control?
Temperature fluctuation is ≤±0.5℃ and uniformity is ≤2℃ at atmospheric pressure. Pressure deviation is ±2 kPa (101.3–40 kPa), ±5% (40–4 kPa), and ±0.1 kPa (4–1 kPa).
3. What is the maximum simulated altitude?
The chamber can simulate altitudes of 10.000 meters or higher.
4. Can it perform coupled environmental tests?
Yes, you can simultaneously simulate temperature extremes and low-pressure conditions to test equipment under real-world high-altitude scenarios.
5. How long does it take to reach low-pressure conditions?
The pressure can decrease from atmospheric to 1 kPa within 30 minutes, adjustable based on test requirements.
6. Is the chamber suitable for continuous testing?
Yes, the chamber is designed for long-duration tests with precise environmental control.
7. How should the chamber be maintained to ensure long-term performance?
Regular inspection of seals, vacuum pump maintenance, cleaning of the stainless steel interior, and periodic sensor calibration are essential for reliable operation.
