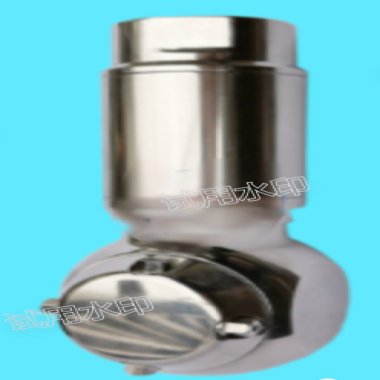

STD ZG4 rotary tank washer

Application:

STD ZG4 rotary tank washer is suitable for 3D cleaning of small to medium sized tanks,vessel or machines. It is commonly used in pharmaceutical , food and beverage, beer, petroleum, beverage,fuel ethanol, chemical, industrial fermentation,marine and where a high cleaning performance is required.

Working principle:

Impeller is driven by cleaning fluid and drives internal reduction mechanism. Gear mechanism operates according to set track to realize the revolution and the rotation, thereby achieving 360° thorough cleaning.

Feature of tank cleaning nozzle

● Optimized structural design results in a water jet that produces greater impact

● Excellent sealing design, less than 3% leakage, thus saves cleaning fluid

● Very high cleaning performance at low pressure

● Overall optimized design,able to insert in small openings of 85MM

● Meet the sanitary requirement
