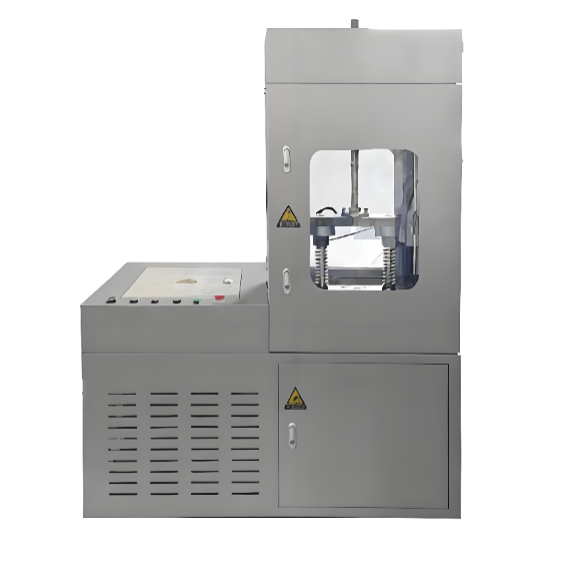

The Two-Station Spring Tension and Compression Fatigue Testing Machine is designed for fatigue life testing of various tension springs, compression springs, helical springs, shock absorber springs, and elastic components.
The Two-Station Spring Tension and Compression Fatigue Testing Machine is mainly used for fatigue life testing of various elastic components, including tension springs, compression springs, helical springs, shock absorber springs, and sealing element springs.
The machine is widely applied in spring manufacturing, automotive shock absorber production, mechanical component industries, and research laboratories for durability evaluation and quality inspection.
It can adjust the test amplitude and frequency according to the technical requirements of different springs and elastic components. The LCD display allows presetting test cycles and frequency, enabling automatic test operation.
Driven by a motor, reducer, cam mechanism, and connecting rod structure, the machine generates reciprocating compression and extension movements to simulate actual working conditions of springs.
GB/T 1239.2 — Cold Coiled Helical Compression Springs — Technical Requirements
GB/T 1973.1 — Small Helical Compression Springs — Technical Requirements
GB/T 19844 — Springs — Technical Specifications
JB/T 7796-2005 — Spring Tension and Compression Testing Machine
GB/T 2611 — General Requirements for Testing Machines
GB/T 16825.1 — Verification of Static Uniaxial Testing Machines
JJG 139 — Verification Regulation of Tension, Compression and Universal Testing Machines
Two-station design improves testing efficiency.
Adjustable test frequency and amplitude for different spring types.
Preset test cycles with automatic shutdown function.
LCD display for real-time test information.
Simple operation with stable and reliable performance.
Suitable for long-term fatigue life testing of springs and elastic components.
| Item | Technical Parameters |
|---|---|
| Maximum Test Force | 10 N–5000 N (Customizable) |
| Maximum Specimen Length | 230 mm (Customizable) |
| Maximum Specimen Outer Diameter | Ø80 mm (Customizable) |
| Test Frequency | 0.1–50 Hz (Customizable) |
| Amplitude | Max. 50 mm (Customizable) |
| Counter Capacity | 999.999.999 cycles |
| Test Stations | Single / Multiple Specimens |
| Power Supply | AC 220 V ±10%, 50 Hz |
| Motor Output Power | 750 W |
| Counting Stop Accuracy | ±1 cycle |
| Protection Function | Dual protection: Mechanical and Program Control |
| Assembly Quality | Complies with GB/T 2611 requirements |
