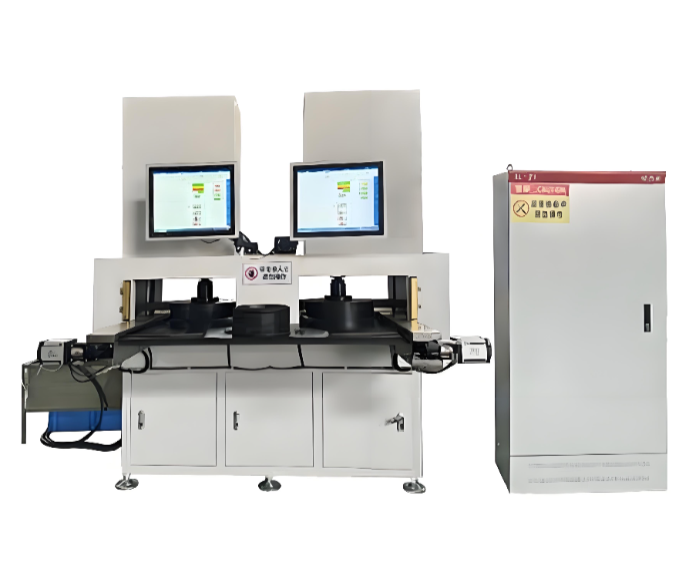

Disc Spring Sorting Testing Machine

The Disc Spring Sorting Testing Machine is designed for accurate measurement and automatic sorting of disc springs based on their mechanical performance.The machine can precisely measure the static compression strength of disc springs under compressed conditions and evaluate their ability to withstand static loads, such as measuring the load generated at a specified deformation.It can also determine key performance parameters including spring stiffness (elastic modulus), maximum deformation, and residual deformation. The equipment supports testing the force at a specified deformation or measuring the remaining height/deformation under a specified test force.By setting the qualified range of spring force or height parameters, the machine can automatically perform force-based or height-based sorting, improving inspection efficiency and ensuring consistent product quality. It is widely used in disc spring manufacturing, automotive components, machinery, and precision spring quality control applications.

Main Structure and Functions

Main Frame:

Adopts a gantry-type structure, providing a stable support platform and installation base for the testing machine.

Transmission System:

Mainly consists of a reducer, precision ball screw mechanism, and guiding components. It transfers power to the compression plate, enabling accurate upward and downward movement.

Drive System:

Composed of an AC servo speed controller and servo motor, providing stable power output and driving the testing system.

Measurement and Control System:

The test force measurement and control system consists of a high-precision load cell, signal amplifier, and related components. The displacement measurement system uses a photoelectric encoder to achieve computer-based display, control, data acquisition, and processing functions.

Safety Protection System:

Includes specimen breakage stop protection, overload protection, crosshead limit protection, over-current protection, over-voltage protection, and overspeed protection to ensure safe and reliable operation.

Applicable Standards

DIN EN 16983 — Disc Springs — Quality Requirements — Dimensions and Tolerances

DIN EN 16984 — Disc Springs — Calculation and Design Principles

DIN 2092 — Disc Springs — Calculation

DIN 2093 — Disc Springs — Quality Specifications

GB/T 1972 — Disc Springs

JB/T 7367 — Technical Conditions for Disc Springs

GB/T 1239.2 — Cold Coiled Helical Compression Springs — Technical Requirements

ISO 10243 — Tool Dies — Heavy Load Compression Springs (Related Spring Performance Testing)

Main Technical Specifications

Applications

The Disc Spring Sorting Testing Machine is mainly used for mechanical performance testing, quality inspection, and automatic sorting of disc springs, Belleville springs, and elastic components.

It is widely applied in:

Disc spring manufacturing industry: Inspection of finished products and batch quality control.

Automotive industry: Performance evaluation of disc springs used in clutches, transmissions, suspension systems, and precision components.

Mechanical equipment manufacturing: Testing of elastic components used in heavy machinery and industrial equipment.

Aerospace and precision equipment: Verification of spring load characteristics, stiffness, and deformation performance.

Research institutions and laboratories: Analysis of spring mechanical properties and product development.

The machine can perform:

Static compression load testing of disc springs.

Load–deformation characteristic testing.

Spring stiffness (K value) measurement.

Maximum load capacity testing.

Residual deformation testing.

Automatic qualification sorting based on preset force or height ranges.
