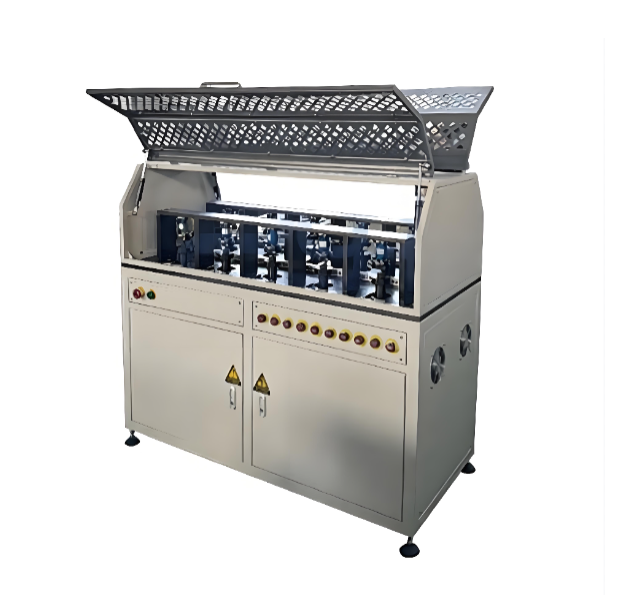

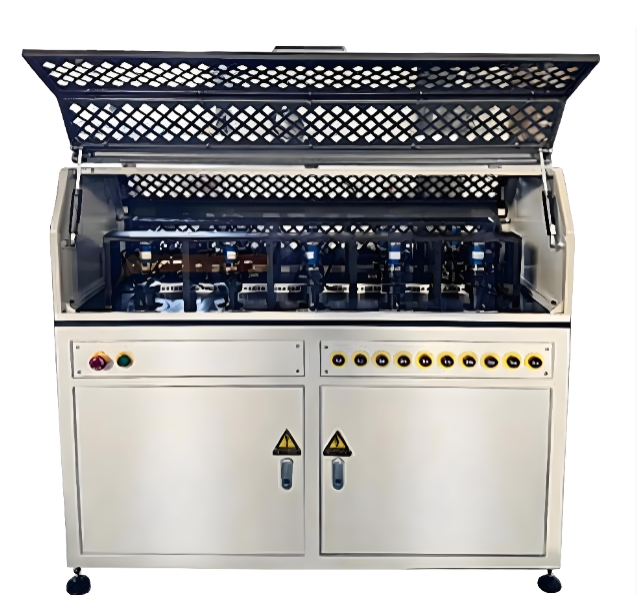

The 10-Station Torsion Spring Fatigue Testing Machine consists of a servo motor, precision transmission system, computer control and display system, and other components. It is suitable for fatigue life testing of various torsion springs, spiral springs, clock springs, and other torsional spring components.The servo speed control system controls the motor operation according to commands from the computer, enabling clockwise and counterclockwise rotation to perform reciprocating torsional fatigue tests on spiral springs and torsion springs.The machine is pollution-free and highly efficient, featuring a wide frequency adjustment range and spacious testing area. With appropriate fixtures, it can perform fatigue tests on torsion springs of different specifications.The computer-controlled system provides automatic shutdown when the preset number of test cycles is reached and automatic shutdown when the spring force or torque decreases to the specified value.
Featuring a high level of integration, simple structure, low failure rate, stable and reliable performance, and easy operation, the machine is widely used in automotive component manufacturers, research institutions, universities, and spring manufacturing plants.
ASTM F1566
EN 16955
ISO 10819
GB/T 1239.2
JB/T 7367
| Item | Specification |
|---|---|
| Maximum Test Torque | 5 N·mm–500 N·m, customizable |
| Number of Test Stations | 10 stations, customizable |
| Testing Machine Accuracy Class | Class 0.5 / Class 1 |
| Torque Measurement Range | 1% FS–100% FS |
| Test Force Resolution | 0.001–0.01 N·m |
| Torque Loading Direction | Clockwise and counterclockwise |
| Torsion Speed Control Range | 0.1–720°/min, customizable |
| Torque Resolution | 1 / ±300.000 |
| Rotation Angle Measurement Range | 0°–99.999.99° |
| Adjustable Test Space | 70 mm |
| Test Travel | 300 mm |
| Relative Error of Torsion Angle Indication | < ±0.5% |
| Power Supply | 220 V, 50 Hz |
| Torsion Fixtures | To be discussed |
| Test Frequency | 0–5 Hz |
| Equipment Weight | Approx. 150 kg |
| Operating Mode | Automatic motor loading |
| Appearance | Complies with GB/T 2611 |
Ten-station simultaneous testing design, significantly improving testing efficiency.
Independent control of each test station, supporting simultaneous testing of multiple samples.
Adjustable torsion angle, torsion speed, and test cycles.
Automatic recording of test cycles and test data.
Automatic stop when the preset number of cycles is reached or abnormal conditions occur.
High-precision torque sensors ensure accurate and stable torque measurement.
Digital display and intelligent control system for convenient operation.
Suitable for fatigue life and durability testing of torsion springs under repeated torsional loading.
Test parameters can be preset and test results can be automatically saved for traceability.
