1. Product OverviewThe Class ABB Solar Simulator (Sol1A series) is a large-area solar simulatio
WhatsApp : +86 13816217984
Email : info@qinsun-lab.com

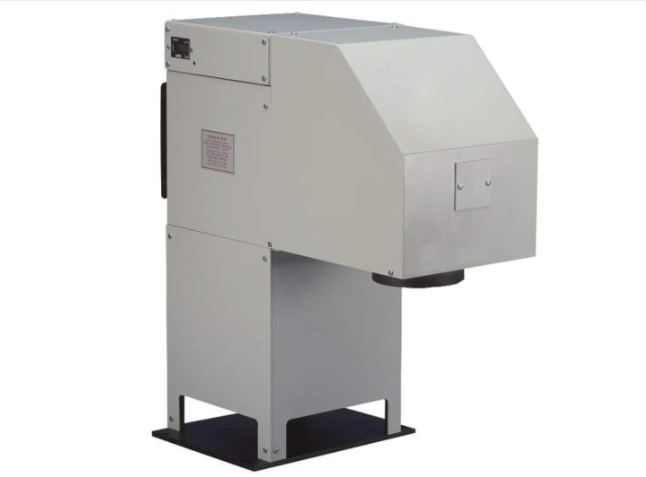

The Class ABB Solar Simulator (Sol1A series) is a large-area solar simulation system designed for laboratory or production environments. Using a single xenon lamp and proprietary filter, it efficiently meets Class ABB performance parameters without compromising 1 SUN output power. The system is cost-effective and ideal for solar cell and module testing, production quality control, and research applications requiring large-area illumination.
Class ABB Performance
Spectral Match: Class A, simulates the solar spectrum accurately
Irradiance Uniformity: Class B, ensures minimal hot spots in the working area
Temporal Stability: Class B, stable output over time for reliable measurements
Includes IEC, ASTM, and JIS calibration certificate
Xenon Arc Lamp
Continuous-wave (CW) source suitable for all photovoltaic materials
Ozone-free xenon short-arc lamp ensures spectral consistency
Lamp wattage available in 450 W, 1000 W, and 1600 W for various beam sizes
Safety and Control
Housing with temperature sensors and interlocks for operator safety
Forced air cooling maintains optimal lamp and optical component temperature
Integrated shutter for precise control of exposure
Adjustable Beam
Output beam size options: 4 x 4 in., 6 x 6 in., 8 x 8 in.
Beam divergence (half angle): <±4°, <±3°, <±2° depending on model
IEC 60904-9 Edition 2 (2007)
JIS 8904-9 (2017)
ASTM E927-10 (2015)
| Model | 4A | 6A | 8A |
|---|---|---|---|
| Simulator Class | Class ABB | Class ABB | Class ABB |
| Lamp Type | Xenon | Xenon | Xenon |
| Lamp Wattage | 450 W | 1000 W | 1600 W |
| Output Beam Size | 4 x 4 in. | 6 x 6 in. | 8 x 8 in. |
| Beam Uniformity | <5% | <5% | <5% |
| Beam Divergence (Half Angle) | <±4° | <±3° | <±2° |
| Typical Output Power | 100 mW/cm² (1 SUN, 80-110% adjustable) | 100 mW/cm² (1 SUN, 80-110% adjustable) | 100 mW/cm² (1 SUN, 80-110% adjustable) |
| Working Distance | 6.0 in. ±0.5 in. | 7.0 in. ±0.5 in. | 15.0 in. ±0.5 in. |
| Spectral Match Classification | A (IEC, JIS, ASTM) | A (IEC, JIS, ASTM) | A (IEC, JIS, ASTM) |
| Temporal Instability Classification | B (IEC, JIS, ASTM) | B (IEC, JIS, ASTM) | B (IEC, JIS, ASTM) |
| Uniformity Classification | B (IEC, JIS, ASTM) | B (IEC, JIS, ASTM) | B (IEC, JIS, ASTM) |
| Light Ripple | <1% rms | <1% rms | <1% rms |
| Line Regulation | 0.01% | 0.01% | 0.01% |
| Power Requirements | Lamp Housing: 95-264 VAC / 3A / 47-63 Hz; Power Supply: 95-264 VAC / 12A / 47-63 Hz | Lamp Housing: 95-264 VAC / 3A / 47-63 Hz; Power Supply: 95-264 VAC / 12A / 47-63 Hz | Lamp Housing: 95-264 VAC / 3A / 47-63 Hz; Power Supply: 190-264 VAC / 15A / 47-63 Hz |

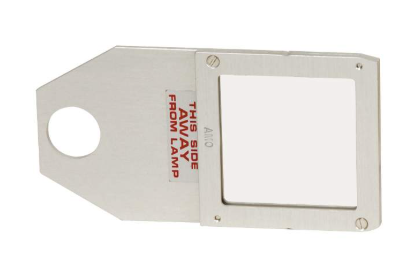

AM 1.5G spectral correction filter
Beam alignment and calibration tools
Replacement xenon lamp
Safety interlock system
Calibration and performance verification instruments
Operation
Install and align the lamp assembly with the test sample
Set output power, exposure time, and cycles using control software
Activate safety interlocks and ensure housing doors are closed before lamp ignition
Use the integrated shutter to safely start and stop illumination
Maintenance
Replace lamp at the end of rated life to maintain 1 SUN output and Class A spectral match
Clean housing, optics, and filters regularly to maintain uniformity and performance
Inspect and maintain cooling system to ensure optimal lamp temperature
Test shutter and interlock systems regularly for safe operation
