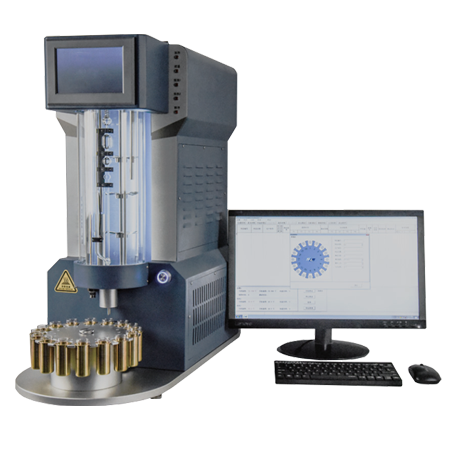

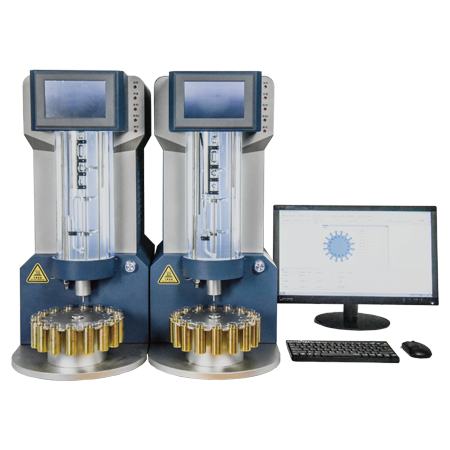

Automatic Kinematic Viscometer

Viscosity is defined as the rate of a fluid’s internal resistance to flow. Intermolecular force, molecular mass and temperature are considered as the main factors effecting the viscosity. Fluids that have directly proportional flow rate with friction resistance are called as Newtonian fluids. Viscosity values of Newtonian fluids are commonly determined in terms of kinematic viscosity. Best method to measure kinematic viscosity of Newtonian fluids is by using capillary (kinematic) viscometers. For the kinematic viscosity measurements of Newtonian fluids, automatic kinematic viscometer instruments provide the most reliable results by precise temperature and timing control.

Automatic kinematic viscometer provides the most reliable results by precise temperature and timing control. All operations as kinematic viscosity measurement, viscometer cleaning, calibration etc. are handled automatically. This leads to eliminate bias between different operators while providing reliable results.

Automatic Kinematic has testing range of 0.5 to 20000 mm2/s. It features uniform temperature control through 10-liter homeothermic bathtub for reliable analysis. Equipped with stainless steel components and heater that resist corrosion and enhance long-term durability. Incorporates an LCD screen with menu guidance for interactive operation and clear parameter display. Our Viscometer is ideal for measuring viscosity of oils in petroleum, energy, and lubricant industries.

Applications：

Automatic Kinematic Viscometer is widely used across industries like chemicals, pharmaceuticals, petroleum, food and beverages, cosmetics, etc.

Standard:

ASTM D445, D446, ISO3104，GB/T265，GB/T30515;

Adopting standards:

ASTM D445 and ASTM D446

Testing principle: The liquid passes through a calibrated glass capillary under the action of gravity, and the flow time is measured to calculate the kinematic viscosity (ν=K × t, where K is the capillary constant and t is the flow time).

Applicable liquids: transparent liquids (such as lubricating oil) and opaque liquids (such as heavy oil, asphaltene solution).

Temperature control: precise constant temperature bath (such as 40 ℃± 0.005 ℃, 100 ℃± 0.005 ℃) to ensure consistency of testing conditions.

Work environment：

Technical parameter:

Features：

Equipped with 16-bit sample tray, can work all day long. Intelligent preheat, inject, measure, clean, dry, calculate results and repetitive calculation.

The apparatus adopts photoelectric or thermal detection, can measure transparent and opaque samples, include Newtonian fluid such as gasoline, diesel, kerosene, cutting fluid, heat conducting oil, additive, fresh and in-use lubricating oils, etc.

With PTC sample intelligent preheating function.The apparatus can control preheating temperature automatically according to the expected temperature of the sample.

Preheat temperature range: room temperature~120℃， Heating rate:15℃/min. Reduce the sample thermostatic time greatly during testing.

Build-in Peltier refrigeration system.It uses thermostatic bath liquid as cooling medium directly, features fast cooling speed.

Apply the self-adaptive liquid level balance technology. It adapts to large-span adjustment of test temperature, can increase and decrease thermostatic medium automatically during heating and cooling process, keep the same immersion depth.

The apparatus build-in Windows operating system, easy to operate, can be connected to LIMS system and barcode scanner, input sample information automatically.

The system build-in automatic calibration function of the viscometer constant, and temperature calibration, internal clock timing calibration, also can convert Kinematic viscosity into Engler viscosity and calculate viscosity Index automatically and other functions

Overtemperature protection function of both software and hardware. Over temperature alarm, dry heat protection, cleaning solution insufficient prompt, waste liquid cleaning prompt and other functions, ensuring safe operation.

Double glass bath design,PT1000 high precision temperature sensor, double-blade stir, make the thermostatic bath keep stable and accurately, temperature precision is 0.005℃.

Automatic intelligent dual solvent cleaning function, cleaning mode can be customized.

With timing verification port, can do accurate time verification to the instrument through a standard time calibrator.

Optional Accessories:

Printer

Laptop

500 ml Viscosity Reference standard

Polyethylene sample cups

FAQ:

1.What is an Automatic Kinematic Viscometer?

An Automatic Kinematic Viscometer is an apparatus designed to measure the kinematic viscosity of fluids automatically, providing precise and repeatable results without manual intervention.

2.How does Automatic Kinematic Viscometer work?

It operates by timing the flow of a fluid through a calibrated capillary tube under gravity and automatically calculates the kinematic viscosity based on the measured flow time and temperature.

3.What types of fluids can be tested using Automatic Kinematic Viscometer?

It is used to test a wide range of fluids including oils, fuels, lubricants, and other industrial liquids that require viscosity measurement.

4.How is Automatic Kinematic Viscometer used in the petroleum industry?

It is used in the petroleum industry to measure the viscosity of fuels, lubricants, and crude oil, helping ensure product quality and performance under different temperature conditions.

5.Can Automatic Kinematic Viscometer be used for quality control in lubricants manufacturing?

It is widely used in lubricants manufacturing for quality control to verify that the viscosity meets industry specifications before the product is released.

6.How does Automatic Kinematic Viscometer assist in research and development?

In research and development, it helps formulate new fluid products by providing precise viscosity measurements, enabling developers to optimize fluid properties.

7.Can Automatic Kinematic Viscometer be used in food industry applications?

It is used to measure the viscosity of edible oils and other liquid food products to maintain consistency and quality.

8.What role does Automatic Kinematic Viscometer play in pharmaceutical manufacturing?

It is used in pharmaceutical manufacturing to control the viscosity of liquid formulations, ensuring consistency and proper dosage delivery.

9.How is Automatic Kinematic Viscometer used in aviation fuel testing?

It is used in aviation fuel testing to ensure the viscosity remains within safe limits for engine performance and fuel injection systems.

10.How does Automatic Kinematic Viscometer improve consistency in production batches?

It improves consistency in production batches by providing repeatable, automated viscosity measurements, reducing variability between batches.
