The Diaper Absorption Rate Testing Machine is a specialized laboratory device used to evaluate how q
WhatsApp : +86 15601902607
Email : info@qinsun-lab.com

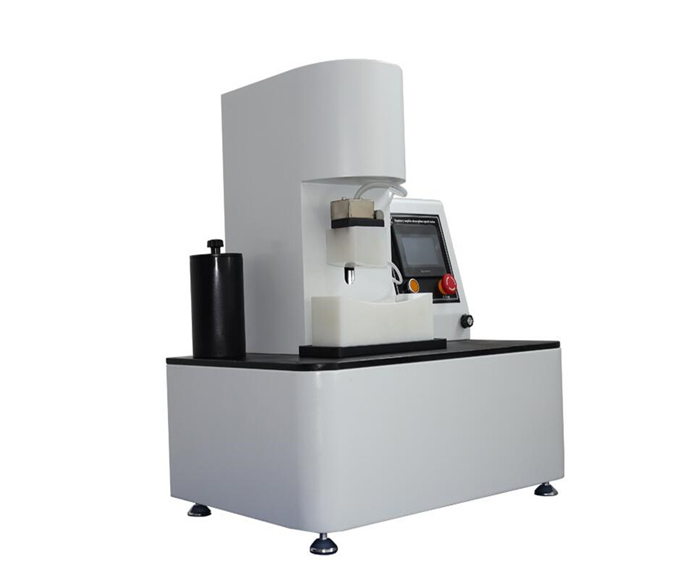

The Diaper Absorption Rate Testing Machine is a specialized laboratory device used to evaluate how quickly diapers, sanitary napkins, and feminine pads absorb liquid. It measures the absorption speed of the product’s absorbent layer under standardized conditions, providing objective data on performance and ensuring compliance with quality standards.This machine is used to measure the absorption rate of diapers, sanitary napkins, and feminine pads, reflecting whether the absorbent layer in these products absorbs liquid in a timely manner. It complies with standards such as GB/T 8939-2018.
(1)GB/T 8939-2018
(2)GB/T 39391-2020
The Diaper Absorption Rate Testing Machine is used to evaluate the liquid absorption performance of diapers, sanitary pads, and other absorbent hygiene products. It measures parameters such as absorption capacity, absorption speed, and distribution efficiency under controlled conditions, providing critical data for product quality control, research and development, and compliance with industry standards.
The sanitary napkin is adhered to the curved sample holder of the absorption rate testing machine. A standard test module is placed on the absorption area of the sample surface. The automatic liquid dispensing device adds a specified volume of standard synthetic test fluid into the standard test module. A timer records the time it takes for the sanitary napkin to completely absorb the standard synthetic fluid, indicating its absorption rate.
| Parameter | Specification |
|---|---|
| Standard Test Module | Dimensions: (76 ± 0.1) mm × (80 ± 0.1) mm; Mass: 127.0 ± 2.5 g |
| Curved Sample Holder | Length: 230 ± 0.1 mm; Width: 80 ± 0.1 mm |
| Automatic Liquid Dispensing Device | Dispensing volume: 1–50 ± 0.1 mL; Dispensing time ≤ 3 s |
| Automatic Displacement Adjustment | Adjusts travel distance automatically for testing (no manual input required) |
| Test Module Lifting Speed | Adjustable from 50 to 200 mm/min |
| Automatic Timer | Timing range: 0–99999 s; Resolution: 0.01 s |
| Automatic Data Measurement | Automatically records test results and generates summary reports |
| Power Supply | AC 220 V, 0.5 kW |
| Dimensions | 420 × 480 × 520 mm |
| Weight | 42 kg |
(1)Standard liquid reservoir and dispensing system.
(2)Test plates and sample holders.
(3)Sensors for liquid level and absorption measurement.
(4)Data acquisition system and control software.
Prepare diaper samples according to standard size specifications.
Place samples on test fixtures and start the liquid dispensing system.
Monitor absorption rate, capacity, and distribution using sensors.
Record and analyze data through the software for comparison with standards.
Clean liquid reservoirs, dispensing nozzles, and sample holders after each test.
Check and calibrate sensors periodically to ensure accurate readings.
Lubricate mechanical parts if applicable and inspect moving components.
Store the machine in a dry, stable environment and cover when not in use.
1.What does the Diaper Absorption Rate Testing Machine measure?
It measures absorption capacity, absorption speed, and liquid distribution efficiency of diapers and other absorbent products.
2.Which products can be tested with this machine?
Diapers, sanitary pads, adult incontinence products, and other similar absorbent hygiene items.
3.How is the test performed?
A controlled amount of liquid is dispensed onto the sample, and sensors record absorption rate and distribution, with results analyzed via software.
4.How often should the machine be maintained?
After each test, clean the reservoirs and sample holders; periodically calibrate sensors and inspect mechanical components.
5.Why is this testing important?
It ensures product quality, verifies performance against standards, and supports R&D for improved absorbent hygiene products.
