Femoral Stem Fatigue Testing Machine

The Femoral Stem Fatigue Testing Machine is a device used to evaluate the fatigue performance and durability of artificial femoral stems under repeated mechanical loading.

Standards

(1)YY/T 0809.4

(2)ISO 7206-4

These standards specify the test methods and performance requirements for fatigue testing of stemmed femoral components in partial and total hip replacements under defined conditions. Fatigue tests are conducted at a frequency of 1–30 Hz, load ratio R = 0.1. maximum load 2300 N, for 5 million cycles or until specimen failure.

Application

The Femoral Stem Fatigue Testing Machine is used to evaluate the mechanical durability and fatigue performance of femoral implants under cyclic loading. It simulates long-term physiological stresses experienced by hip prostheses in the human body, ensuring reliability, safety, and compliance with orthopedic implant standards. Typical applications include:

Orthopedic implant testing: Assess fatigue life of femoral stems in hip replacements.

Quality control: Verify consistency and mechanical performance of manufactured implants.

Research and development: Support design optimization and material selection for new hip prostheses.

Standards compliance: Conduct tests according to ISO 7206. ASTM F2077. and other orthopedic testing guidelines.

This machine ensures implants can withstand repeated physiological loads, reducing the risk of implant failure in patients.

Product Features

Next-generation fatigue testing system using large electromagnetic motor as the actuation core.

Direct-drive electromagnetic motor ensures stable operation and high repeatability for precise force and displacement control.

Built-in electromagnetic actuator with low friction and high repeatability, providing fast system response and high speed.

Capable of performing tension, compression, bending, shear, creep, and relaxation tests.

Meets modern material testing requirements for high precision, high frequency, stability, and durability.

Features oil-free, seal-free, maintenance-free operation, long service life, high integration, easy installation, and compact footprint.

Offers a variety of fixtures and accessories for different test setups.

Specifications

Accessories

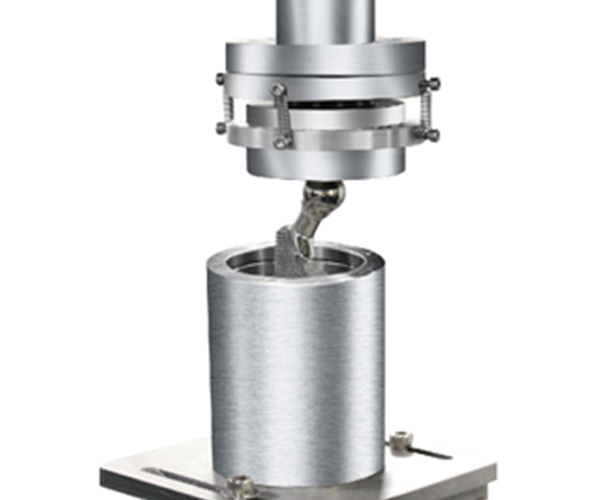

(1)Fixture Clamps: Secure femoral stems for precise load application.

(2)Loading Actuator: Applies controlled cyclic forces simulating physiological stresses.

(3)Data Acquisition System: Monitors displacement, load, and fatigue cycles in real time.

(4)Calibration Weights/Sensors: Ensure accurate load and measurement validation.

Test Procedures

Specimen Preparation: Mount femoral stem in the fixture according to standard orientation.

System Setup: Connect sensors, actuators, and data acquisition units.

Fatigue Testing: Apply cyclic loading at defined amplitude and frequency until failure or target cycle count is reached.

Data Recording: Continuously monitor and record load, displacement, and number of cycles.

Maintenance Information

Daily Cleaning: Wipe fixtures, actuators, and sensors to prevent debris buildup.

Calibration: Regularly calibrate load cells, displacement sensors, and actuator performance.

Inspection: Check mechanical connections, cables, and moving parts for wear or damage.

Lubrication & Storage: Lubricate moving components if required and store the machine in a dry, controlled environment.

FAQ

1. What is the purpose of this machine?

It evaluates the fatigue life and mechanical durability of femoral stems under cyclic physiological loads, ensuring implant safety and reliability.

2. Which implants can be tested?

Designed for femoral stems used in hip replacements, including various sizes, materials, and designs.

3. How does the test simulate real conditions?

The machine applies controlled cyclic loads and angles that mimic in vivo stresses experienced by hip prostheses during daily activities.

4. What standards does this machine comply with?

Supports ISO 7206. ASTM F2077. and other international standards for orthopedic implant fatigue testing.

5. How is maintenance performed?

Clean fixtures and sensors after use, calibrate load cells and actuators regularly, inspect moving parts for wear, and store the machine in a dry, controlled environment.
