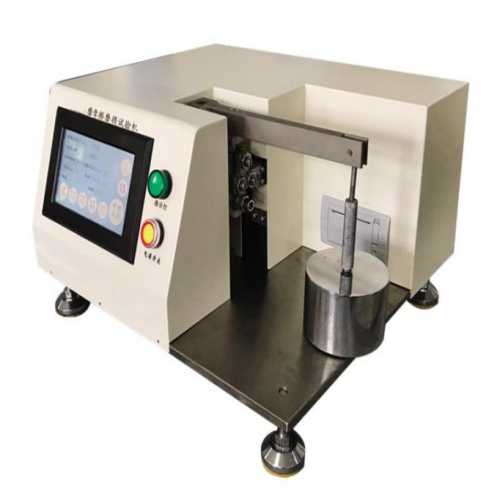

This machine complies with the standard GB/T3960-2016: Methods for Testing Sliding Friction and Wear
WhatsApp : +86 15601902607
Email : info@qinsun-lab.com
| Parameter | Specification |
|---|---|
| Sample Size | (30 × 7 × 6 ± 0.5) mm |
| Drive Speed | 200 rpm ± 5% |
| Load | 20 kg ± 1% |
| Friction Ring | φ40 × 10 mm, HRC 40–45. chamfer 0.5 × 45°, concentricity deviation < 0.01 mm |
| Friction Torque | 0–4 N·m ± 2% |
| Equipment Weight | 52 kg |
| Packed Weight | 82 kg |
| Equipment Dimensions (L × W × H) | 500 × 460 × 320 mm |
| Packed Dimensions (L × W × H) | 650 × 600 × 550 mm |
(1)Main Unit
a. Torque sensor × 1
b. Control system × 1 set
c. Micro-printer × 1
d. Lever
e. Pulley
(2)Set of Weights
Friction Ring × 1
