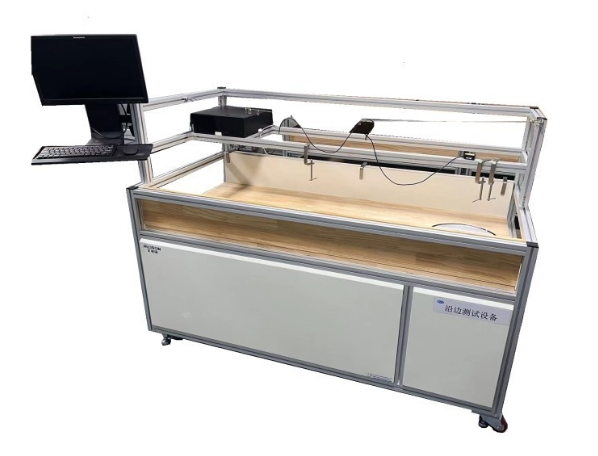

Edge-Following Test Equipment for Robotic Vacuum Cleaners

The Edge-Following Test Equipment for Robotic Vacuum Cleaners is designed to evaluate and record the edge-following and obstacle avoidance capabilities of robotic vacuum cleaners. You use this system to measure minimum obstacle avoidance distances, movement patterns, and speed within a defined test space. Equipped with a high-definition recording camera and data acquisition system, the equipment automatically captures and exports test results via USB for analysis. The system is compliant with international standards, offering accurate, repeatable, and reliable assessment of robotic vacuum cleaner navigation and edge-following performance.

Applications

Evaluating edge-following capabilities of robotic vacuum cleaners

Testing obstacle avoidance and navigation efficiency

Conducting quality control for robotic vacuum cleaner production

Supporting R&D development for autonomous cleaning devices

Use in certification laboratories and testing institutions

Standards

GBT 40229-2021 – Testing Method for Robotic Vacuum Cleaner Edge-Following and Obstacle Avoidance

IEC 62849-2016 – Household and Similar Robotic Cleaning Appliances – Methods for Measuring Navigation and Edge Following Performance

ISO 9241-210:2019 – Human-Centred Design for Interactive Systems (for usability testing applications)

GB/T 28291-2012 – General Requirements and Test Methods for Robotic Cleaning Appliances

Features

• Accurately measures edge-following distances and speeds

• Captures and records movement patterns with high-resolution video

• Configurable test duration and cycles to simulate extended operation

• Displays results on a 2D plane with numerical outputs

• Supports multiple test surface colors for realistic evaluation

• High-speed data acquisition ensures precise measurement of robotic navigation

Technical Parameters

Accessoriess

(1) Test signal generator

(2) High-definition recording camera

(3) Test base and base plate

(4) Data acquisition control system

(5) 17-inch industrial control computer with touchscreen

(6) Color panel sets for varied surface testing

Test Procedures

1.Secure the robotic vacuum cleaner on the test base.

2.Select test parameters including test duration, number of cycles, and surface color via the touchscreen interface.

3.Initiate the test; the system will record movement paths, speeds, and edge-following distances.

4.Monitor the test in real-time using the 2D display and high-definition camera.

5.Upon completion, export numerical and visual data via USB for analysis.

6.Clean and reset the test station for the next evaluation cycle.

Conclusion

The Edge-Following Test Equipment for Robotic Vacuum Cleaners provides precise, repeatable, and reliable evaluation of navigation and edge-following performance. By simulating real operational conditions and capturing both visual and numerical data, you can ensure your robotic vacuum cleaners meet international performance standards. This system is ideal for manufacturers, R&D teams, and testing laboratories requiring high-precision assessment of obstacle avoidance and edge-following capabilities.

FAQ

1. What types of robotic vacuum cleaners can be tested?

You can test robotic vacuum cleaners of various sizes, including domestic and commercial models.

2. Which international standards does this equipment comply with?

GBT 40229-2021. IEC 62849-2016. ISO 9241-210:2019. and GB/T 28291-2012.

3. How is test data recorded and exported?

The system captures numerical data and movement patterns in real-time, which can be exported via USB for analysis.

4. Can test parameters such as duration and cycles be adjusted?

Yes, both test duration and cycles are fully configurable to simulate different operational scenarios.

5. How is edge-following distance measured?

Edge-following distance is recorded using the high-definition camera and test signal generator, with data processed by the industrial control computer.

6. Can different floor surfaces or colors be simulated?

Yes, the system supports black, white, natural wood, and 18% gray test panels for realistic evaluation.

7. What is the data acquisition speed?

The system acquires data at ≥10 kHz, ensuring accurate capture of rapid movements.
