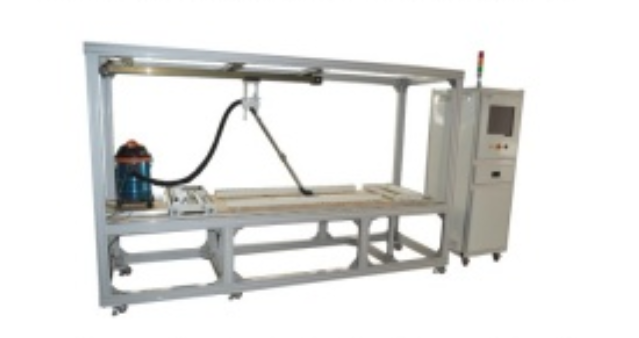

High-End Model of Vacuum Cleaner Dust Removal Performance Testing Equipment

The High-End Vacuum Cleaner Dust Removal Performance Testing Equipment is designed to evaluate the dust removal and cleaning performance of vacuum cleaners on carpets and hard floors. You use this system to simulate real cleaning conditions by driving the vacuum cleaner across standardized test surfaces under controlled speed and stroke settings. Manufactured in compliance with relevant national and international standards, the equipment provides reliable performance data for product development, quality control, and laboratory testing.

Applications

• Dust removal performance evaluation of household vacuum cleaners

• Cleaning efficiency testing on carpets and hard floor surfaces

• Product development and performance comparison during R&D

• Type testing and routine quality inspection in manufacturing plants

• Performance verification by third-party testing laboratories

Standards

• GB/T 20291.1-2014: Household and Similar Electrical Appliances – Vacuum Cleaners – Part 1: Methods for Measuring Performance

• IEC 60312:2010: Vacuum Cleaners for Household Use – Methods for Measuring the Performance

• IEC 62885-2:2020: Surface Cleaning Appliances – Part 2: Dry Vacuum Cleaners for Household or Similar Use – Methods for Measuring the Performance

Features

• You can accurately simulate real cleaning motion through synchronized servo-driven movement

• PLC-controlled operation ensures stable speed, stroke, and test repeatability

• Automatic dust dispersion improves consistency of dust distribution on test surfaces

• Supports both carpet and hard floor dust removal performance evaluation

• Integrated electrical parameter monitoring records voltage, current, power, and energy consumption

• Touchscreen interface allows intuitive parameter setting and test control

• USB data export enables convenient result storage and report generation

Technical Parameters

Accessoriess

(1) Servo-driven dust distribution unit

(2) Standard carpet test surface

(3) Standard hard floor test surface

(4) Dust roller and fiber roller assemblies

(5) USB data export interface

Test Procedures

1.You install the vacuum cleaner under test on the working platform.

2.Select the appropriate test surface, either carpet or hard floor.

3.Set test speed, stroke length, and test cycles via the touchscreen.

4.Activate the dust dispersion system to prepare the test surface.

5.Start the test, allowing the vacuum cleaner to perform reciprocating cleaning motion.

6.The system automatically records electrical and operational parameters.

7.After completion, you export and print the test data as required.

Conclusion

The High-End Vacuum Cleaner Dust Removal Performance Testing Equipment provides you with a reliable and standardized solution for evaluating cleaning performance on carpets and hard floors. By combining precise motion control, automated dust distribution, and comprehensive data acquisition, the system supports accurate performance assessment for both manufacturers and testing institutions.

FAQ

1. What types of vacuum cleaners can be tested using this equipment?

You can test household vacuum cleaners designed for carpet and hard floor cleaning, including upright and canister models.

2. Can the test speed be adjusted to match real usage conditions?

Yes, you can freely adjust the travel speed between 0 and 1.0 m/s through the PLC control system.

3. How is dust applied to the test surface?

Dust is evenly distributed using a servo-driven automatic dust dispersion system with mechanical roller vibration.

4. What parameters are recorded during testing?

The system records voltage, current, power, electrical energy, and operational test data.

5. How are test results stored and exported?

You can export test data via USB and print the results as needed.

6. Is the equipment suitable for laboratory certification testing?

Yes, it is designed in accordance with relevant GB and IEC standards and is suitable for laboratory and certification testing.
