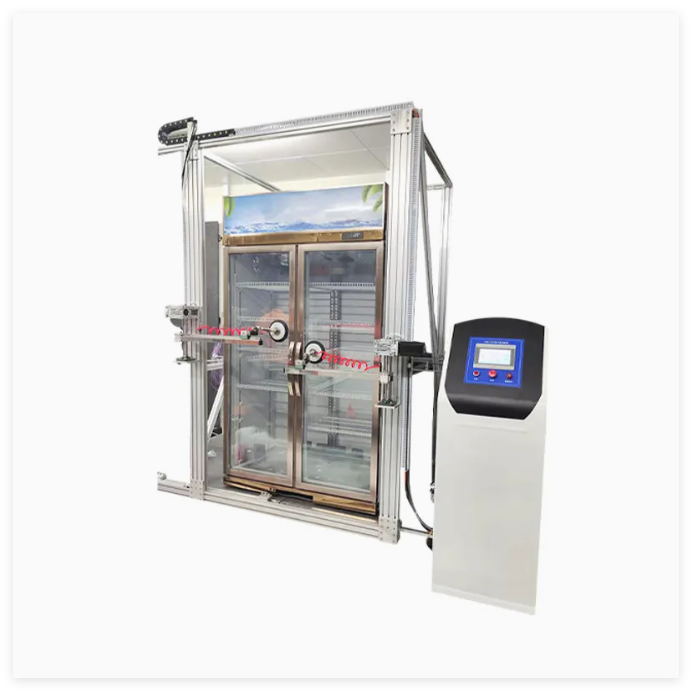

Durability Tester for Left/Right Opening Refrigerated Display Cabinet Doors

The Durability Tester for Left/Right Opening Refrigerated Display Cabinet Doors is designed for long-term durability testing of refrigerator door hinges and handles. You use this system to simulate repeated opening and closing actions of vertical and horizontal refrigerator doors, including multi-door configurations. Through controlled mechanical arm movement and automated operation, the equipment helps you evaluate structural reliability, hinge performance, and handle durability under realistic usage conditions.

Applications

Left-opening and right-opening refrigerator doors

Vertical refrigerator doors

Horizontal refrigerator doors

Multi-door refrigerators and refrigerated display cabinets

Standards

(1) ISO 15502 Household refrigerating appliances – Characteristics and test methods

(2) GB/T 8059-1995 Household refrigerating appliances – General requirements

(3) GB/T 8059.2-1995 Household refrigerating appliances – Refrigerators

(4) GB/T 8059.3-1995 Household refrigerating appliances – Freezers

(5) GB/T 8059.4-1993 Household refrigerating appliances – Combined refrigerators

Features

1. Supports durability testing of both vertical and horizontal refrigerator doors

2. Adjustable frame structure accommodates different refrigerator sizes

3. Multiple mechanical arms enable simultaneous testing of multi-door products

4. Stepless speed adjustment allows accurate simulation of real usage frequency

5. PLC, HMI, and variable frequency control ensure stable and automated operation

6. Automatic fault alarm and shutdown support unattended long-term testing

7. Heavy-duty aluminum profile frame provides high strength and corrosion resistance

Technical Parameters

Accessoriess

(1) Adjustable tightening devices for refrigerator fixation

(2) Mechanical swing arms for door operation

(3) PLC control system

(4) Human-machine interface display

(5) Operation and maintenance manual

Test Procedures

1.Position the refrigerator under test within the frame and secure it using adjustable tightening devices or aluminum profile brackets.

2.Adjust the left and right frame spacing to match the refrigerator width.

3.Set mechanical arm positions according to the door height and configuration.

4.Configure test parameters such as opening angle, speed, and cycle count via the HMI.

5.Start the test to perform repeated door opening and closing actions.

6.Monitor test status through the interface; the system will stop automatically upon completion or fault detection.

Conclusion

Overall, the Durability Tester for Left/Right Opening Refrigerated Display Cabinet Doors provides a stable and reliable solution for evaluating the long-term performance of refrigerator door hinges, handles, and structural components. By accurately simulating real-world opening and closing actions across different door configurations, you can obtain consistent and repeatable durability data to support product design verification, quality improvement, and compliance testing. Its flexible structure, automated control, and standards compliance make it well suited for laboratory and production-level reliability testing.

FAQ

1. What types of refrigerator doors can you test with this equipment?

You can test left-opening, right-opening, vertical, horizontal, and multi-door refrigerator and display cabinet doors.

2. Can multiple doors be tested at the same time?

Yes. The system supports multiple mechanical arms, allowing simultaneous testing of several doors on one unit.

3. Is the opening and closing speed adjustable?

Yes. You can adjust the operating speed between 10 and 32 cycles per minute using the control system.

4. How is unattended testing achieved?

The PLC-controlled system provides full process monitoring, automatic fault alarms, and automatic shutdown.

5. Can the equipment adapt to different refrigerator sizes?

Yes. The adjustable frame allows a maximum width adjustment of up to 2000 mm to fit various refrigerator dimensions.

6. Does the tester comply with appliance testing standards?

Yes. It is designed to meet ISO and GB/T standards for household refrigerating appliance durability testing.
