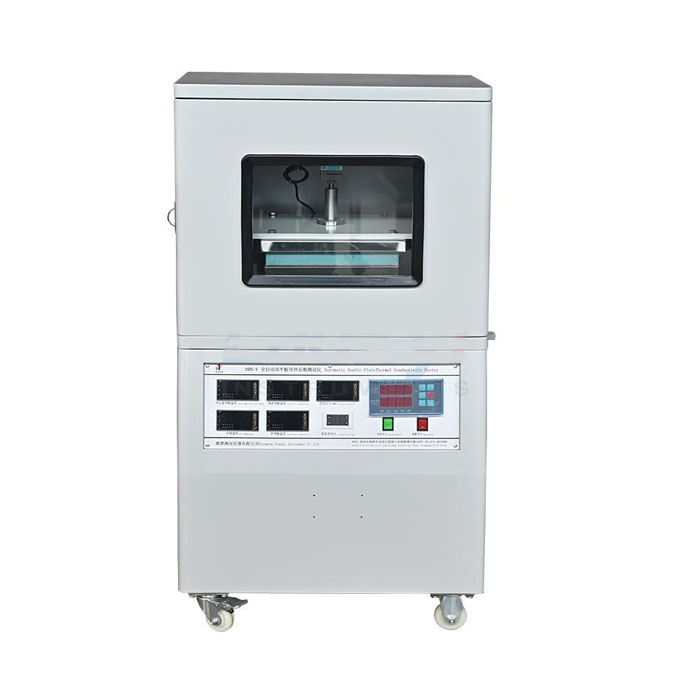

Benchtop High-Precision Material Thermal Conductivity Tester (Guarded Hot Plate Heat Flow Meter Method) is a high-precision instrument designed to measure thermal conductivity and thermal resistance of materials using the widely accepted guarded hot plate heat flow meter method. The instrument applies a stable temperature on one side of the sample, measures the heat flow transmitted to the cold side, and calculates thermal conductivity and thermal resistance automatically. Featuring imported sensors and advanced computer control, the system ensures high measurement accuracy, reliability, and excellent repeatability. It is particularly suitable for low thermal conductivity materials (accurate to 0.1 mW/m·K) and can be used to test plastics, rubber, insulation materials, aerogel panels, vacuum glass, and more. This instrument is widely applied in universities, research institutes, quality inspection agencies, and industrial enterprises.
The tester is suitable for:
Plastics, rubber, and insulation materials
Aerogel panels and vacuum glass
Low thermal conductivity materials requiring high-precision measurement
Common applications include:
University and academic research: Material thermal property analysis
Industrial quality inspection: Ensuring material thermal performance
R&D laboratories: Testing new insulation or thermal management materials
Factory and production control: Material screening for thermal conductivity
The instrument complies with:
GB/T 10295-2008 – Steady-state thermal resistance and related characteristics of thermal insulation materials using the heat flow meter method
ASTM E1530 – Standard Test Method for Evaluating the Steady-State Thermal Transmission Properties of Materials
ASTM C518-04 – Standard Test Method for Steady-State Thermal Transmission Properties by Means of the Heat Flow Meter Apparatus
| Item | Specification |
|---|---|
| Thermal conductivity range | 0.0001–1 W/m·K (accurate to 0.1 mW/m·K); 0.001–300 W/m·K |
| Measurement accuracy | ±1% |
| Sample size | 50 × 50 to 150 × 150 mm; thickness ≤50 mm |
| Sample types | Solid and powdered materials |
| Measurement time | 15–20 min |
| Hot plate temperature range | Room temperature–99.9 °C (standard); optional up to 499.9 °C; precision 0.1 °C |
| Cold plate temperature range | 0–99.9 °C (standard); optional -10–99.9 °C; precision 0.1 °C |
| Pressure range | 0–1000 N; precision 0.1 N |
| Sample thickness measurement | 0–50 mm; resolution 0.1 μm |
| Heat flux sensor | Imported heat flux meter, stable and reliable |
| Automation | Full computer-controlled measurement, data storage, and report printing |
High-precision measurement for low thermal conductivity materials
Full automation from temperature control, pressure application, to data acquisition and report generation
Imported heat flux sensors for reliable and repeatable measurements
Accurate pressure application and sample thickness measurement for enhanced precision
Suitable for both solid and powdered samples
Compact benchtop design for laboratory convenience
Main instrument
Analysis software (Chinese and English version)
HX-1005 precision low-temperature constant temperature water bath (temperature control ±0.01 °C)
Computer (e.g., Lenovo or user-selected)
Calibration reference sample
Prepare the sample ensuring flat, parallel surfaces and proper dimensions.
Place the sample between the hot and cold plates.
Set the desired hot and cold plate temperatures using the computer software.
Apply controlled pressure to the sample via computer-controlled clamp.
Start the measurement; the system automatically measures heat flow and sample thickness.
Wait 15–20 minutes for the steady-state thermal condition.
Software calculates thermal conductivity and thermal resistance and generates a report.
Store or print measurement results as needed.
Keep hot and cold plates clean and free from dust or residue.
Regularly calibrate the instrument using standard reference samples.
Check the heat flux sensor for proper connection and stability.
Maintain stable laboratory environmental conditions to ensure measurement accuracy.
Ensure proper water bath operation for cold plate stability.
1. What types of materials can be tested with this tester?
Thetester can measure thermal conductivity and thermal resistance of plastics, rubber, insulation materials, aerogel panels, and vacuum glass. It is also suitable for powdered materials. The system is especially effective for low thermal conductivity materials where precision down to 0.1 mW/m·K is required.
2. How long does a typical measurement take?
A typical measurement takes 15–20 minutes, depending on sample size, thickness, and thermal properties. The instrument automatically controls temperature, pressure, and heat flow measurements to reach a steady-state condition before calculating thermal conductivity and resistance.
3. How is the sample clamped and measured?
The system uses computer-controlled clamps to apply pressure in the range of 0–1000 N with 0.1 N resolution. Sample thickness is measured automatically with 0.1 μm resolution, ensuring accurate calculation of thermal conductivity and resistance.
4. Can powdered materials be measured?
Yes. The tester can test powdered materials using appropriate sample containment. The instrument measures the heat flow through the sample to calculate its thermal conductivity and resistance accurately, similar to solid samples.
